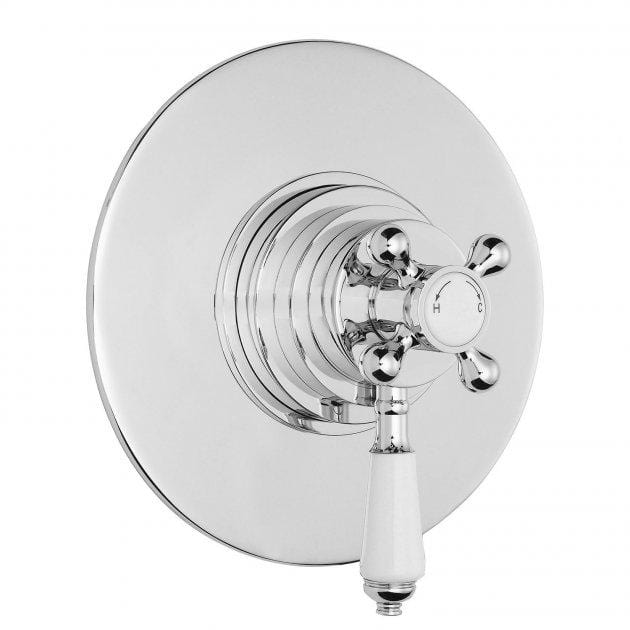

Bring a Victorian sensibility to your bathroom with the Bayswater traditional shower. Accurate flow control & thermostatic control to /- 2 to 3 °C even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. The patented cartridge is highly resistant to calcium build up – even in hard water areas. The Bayswater valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates – even at low pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from solid brass to the highest quality.

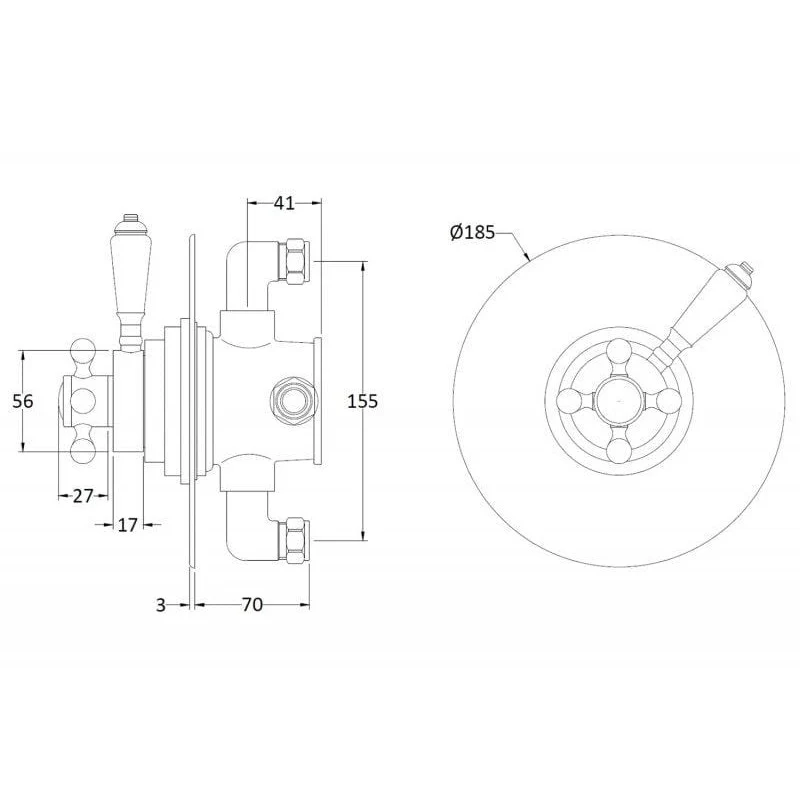

Technical Specification

• Shower Valve Height: 196mm
• Shower Valve Width: 185mm
• Shower Valve Depth: 146mm
• Inlet Connection Size: 1/2 BSP
• Outlet Connection Size: 1/2 BSP
• Connection Centres: 147mm
• Material: Brass
• Colour: White/ Chrome
• Shower Type: Thermostatic
• Shower Valve Controls: 2
• Shower Valve Position: Concealed
• Valve Shape: Round
• Handle Type: Crosshead/ Lever
• Shower Valve Outlets: 1
• Minimum Pressure: 0.1 Bar
• Collection: Dual
• Flow Rate - 0.1 Bar: 5.5
• Flow Rate - 0.5 Bar: 14.5
• Flow Rate - 1.0 Bar: 22
• Flow Rate - 2.0 Bar: 30
• Flow Rate - 3.0 Bar: 35
