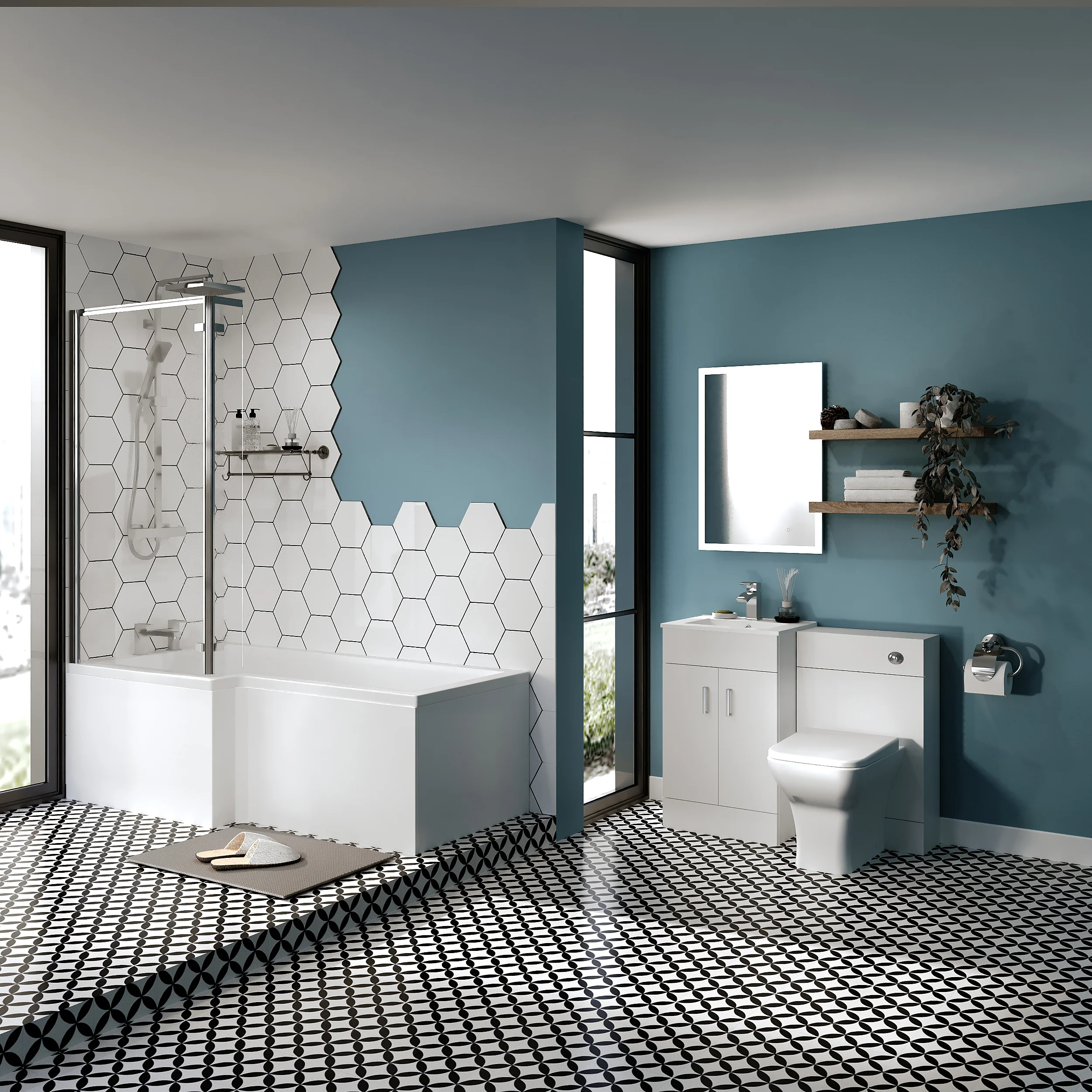

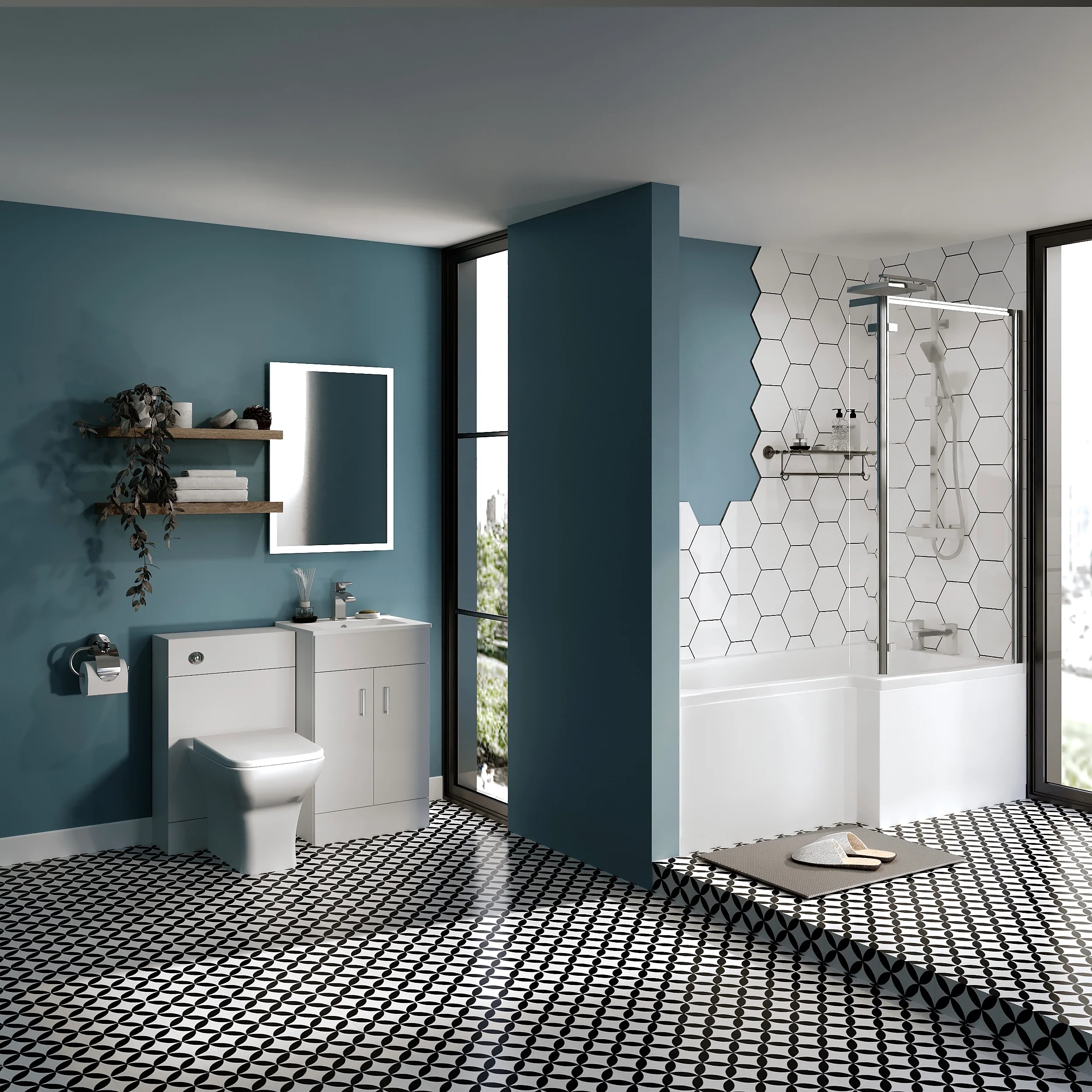

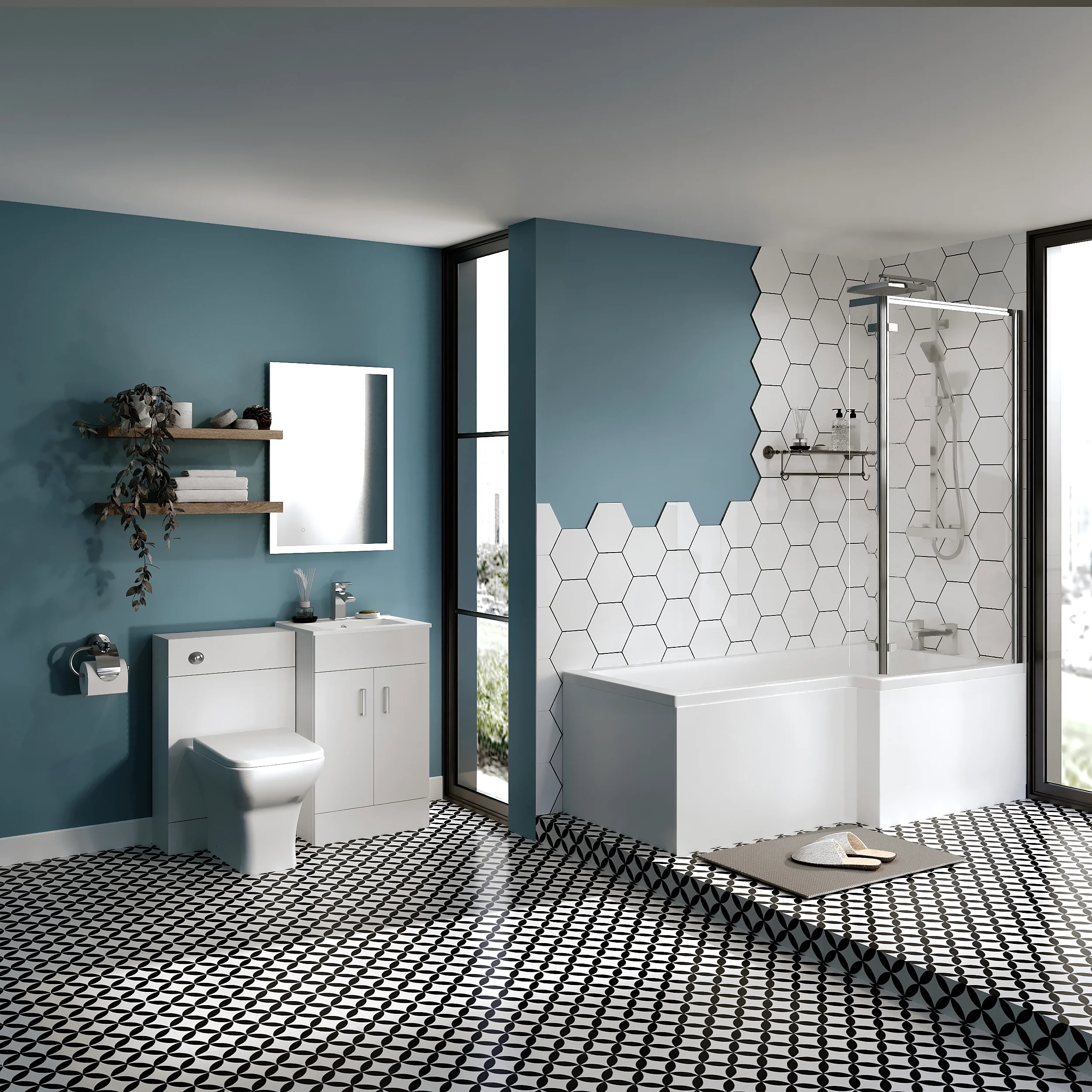

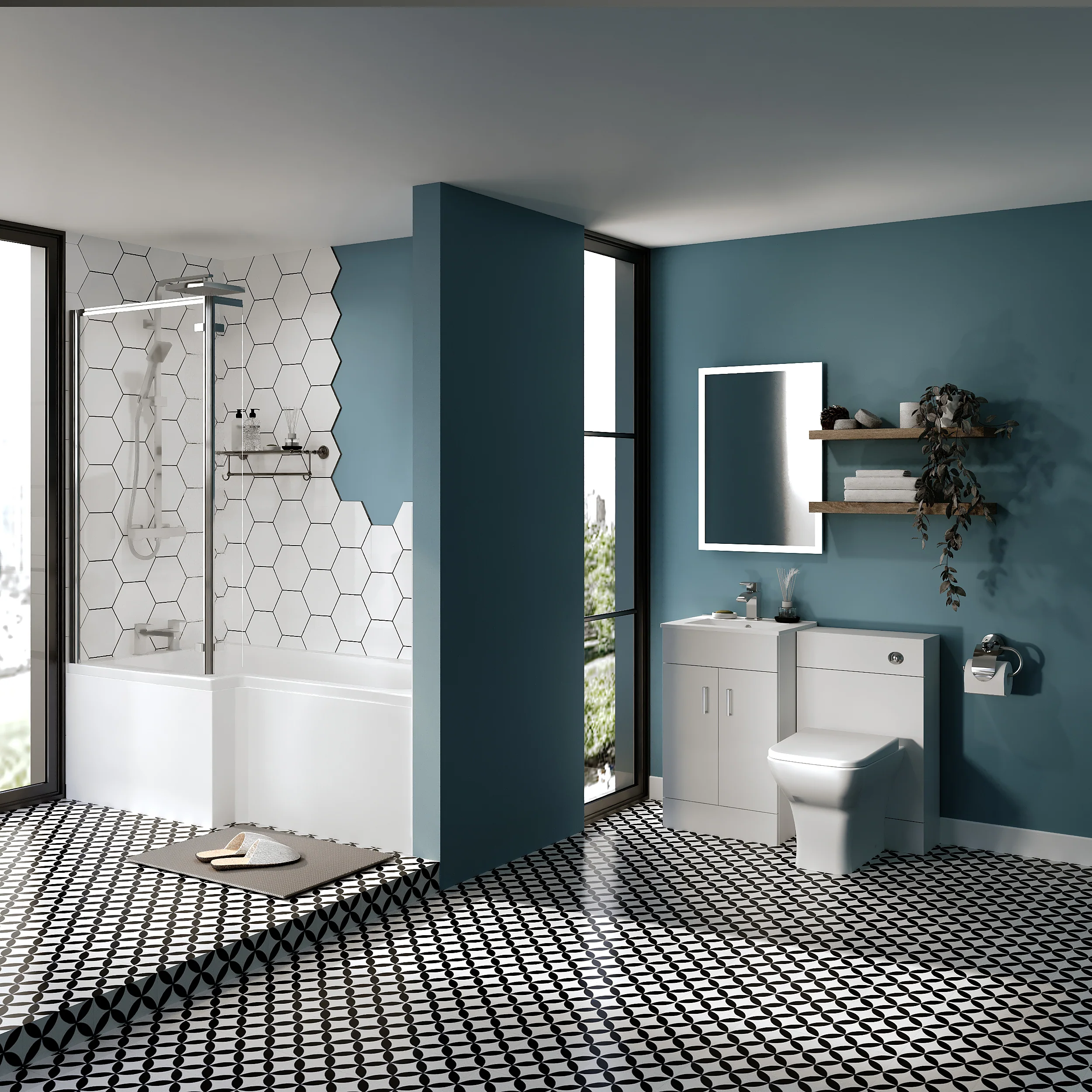

The sleek complete Nova Luxury L Shaped Shower Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish taps and bath. Each item compliments the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination vanity set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-
Bath
Bath Screen
500mm Vanity Unit with Basin
WC Unit
Concealed Cistern
Back to Wall Toilet and seat
Shower
Basin mono mixer and waste
Bath Filler
Bath waste plug and chain

Technical Specification

Bath

• Length : 1700mm
• Width : 850mm / 700mm
• Height : 560mm
• Style : Contemporary
• Material : High Quality Reinforced Acrylic
• Includes : Front Panel & Hinged Screen
• 6mm Toughened safety glass screen - 180 Pivot
• Supplied undrilled, allowing you to place the taps along the back or end
• Finish : White
• Excludes : End Panel (Sold separately)

Screen

• Height : 1400mm
• Width : 790mm
• Glass Thickness : 6mm
• Bath Screen Design : Straight
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible

Basin Unit:

• Height: 800mm
• Width: 500mm
• Depth: 400mm
• Materials Specification: Vitrous China, Gloss White Finish
• Available Storage: 1 cupboard, double doors with shelf, matt aluminium handles
• D-Shape type handle and hinges included

Basin:

• Depth: 390mm
• Width: 510mm
• Height: 180mm
• Requires: Slotted basin waste

WC Unit:

• Depth: 800mm
• Width: 500mm
• Height: 200mm
• 18mm MDF Construction

• Finish: Gloss White

Concealed Cistern

• Flush: Chrome Finish Push Button
• Features: Suitable for Back to Wall Toilets

Toilet

• Height : 410mm
• Width : 365mm
• Depth : 500mm
• Pan Trap Style: P Trap
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Square
• Includes : Pan & Soft Close Seat
• Quick release for ease of cleaning toilet seat

Shower

• Total Height : 800-1200mm
• Total Width : 261mm
• Total Projection : 300mm
• Material Specification : Brass
• Finish : Chrome
• Features : Ceramic Disc Technology
• Includes : Fixtures & fittings
• Featuring a 200mm Square Overhead Shower
• Inlet Feeds : 15mm
• Pipe Inlet Centres : 150mm
• Adjustable height
• Includes 1.5 metre shower hose
• Easy-clean rubber jets on both the shower head and shower handset
• Working pressure between 0.5 and 5.0 Bar
• Easy installation
• WRAS Approved
• TMV2 Scheme
• Anti Limescale Cartridge
• Incorporating diverter to control flow between shower head & handset

Basin Tap

• Height : 129.5mm
• Tap Spout Height : 95mm
• Tap Spout Reach : 102mm
• Width : 46mm

• Shape : Square
• Material Specification : Brass
• Finish : Chrome
• Operation : Single Lever

• Mounting : Deck Mounted
• Style : Modern
• Features : Ceramic Disc Technology
• Minimum Pressure : 0.2 Bar
• Includes push button waste

Bath Tap

• Height : 133mm
• Projection : 120mm
• Tap Base to Spout : 67mm
• Shape : Square
• Material Specification : Brass
• Finish : Chrome
• Operation : Dual Lever 1/4 Turn Ceramic Disc
• Weight : 1.9kg
• Tap Holes : 2
• Pipe Centres : 180mm
• Inlet Connection Size : 3/4"
• Mounting : Deck Mounted
• Style : Modern
• Suitable for: Combination Boilers, Pressurised Systems, Pumped Systems & Gravity Fed Systems
• Minimum Pressure : Subject to a minimum of 0.2 Bar
• Excludes : Waste Kit

• Flow Rate - 0.1 Bar	7.2 l/min
  Flow Rate - 0.5 Bar	23 l/min
  Flow Rate - 1.0 Bar	32.6 l/min
  Flow Rate - 2.0 Bar	47.4 l/min
  Flow Rate - 3.0 Bar	58.3 l/min

Waste

• Includes : Overflow
• Suitable for baths up to 5mm thick
• Connection Size : 1 1/2"
• Waste Pipe Length : 500mm
• Waste Pipe Diameter : 23mm
• Product Diameter : 70mm
