Make the most of your bathroom with our stylish and practical modern Evo l-shaped bathroom suite. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

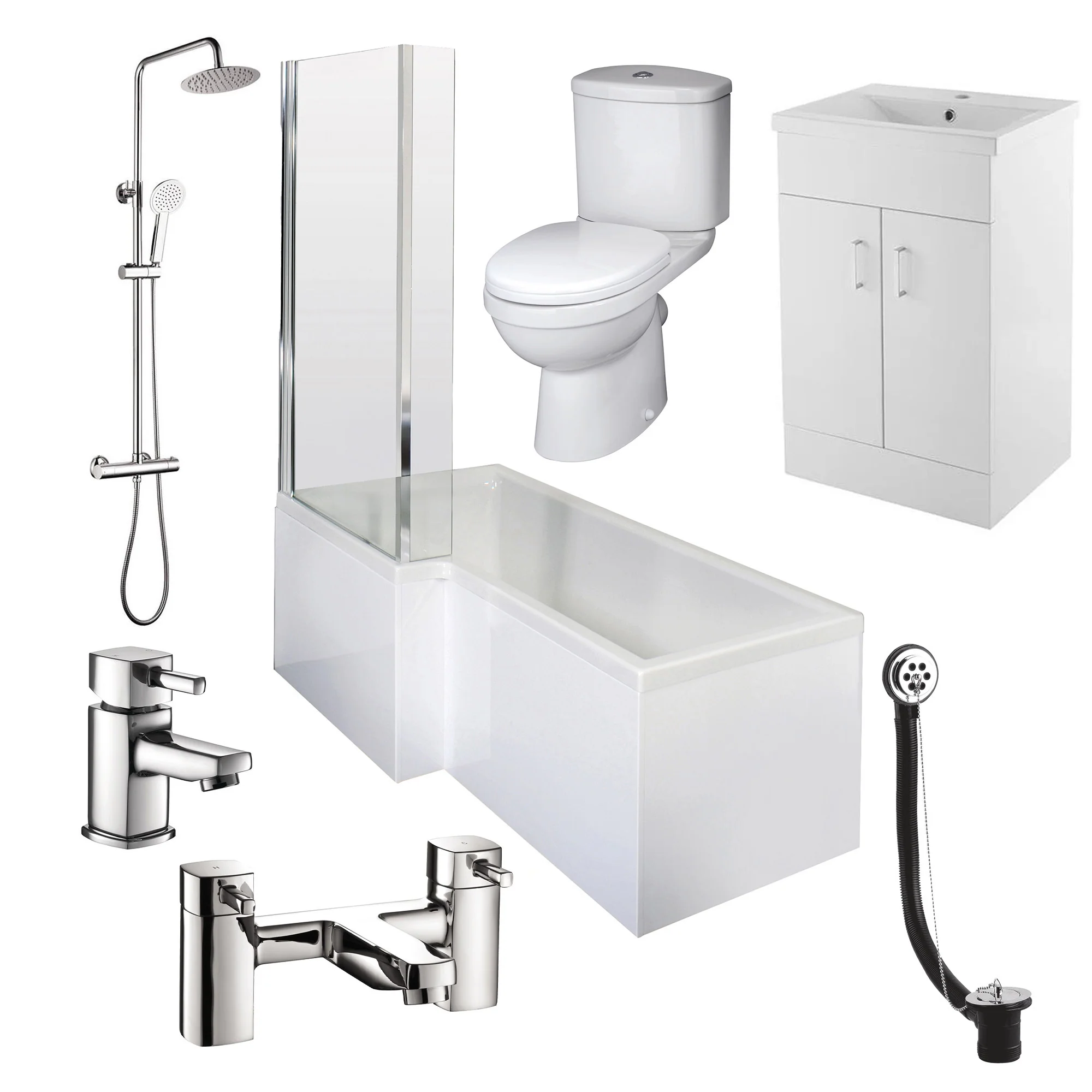

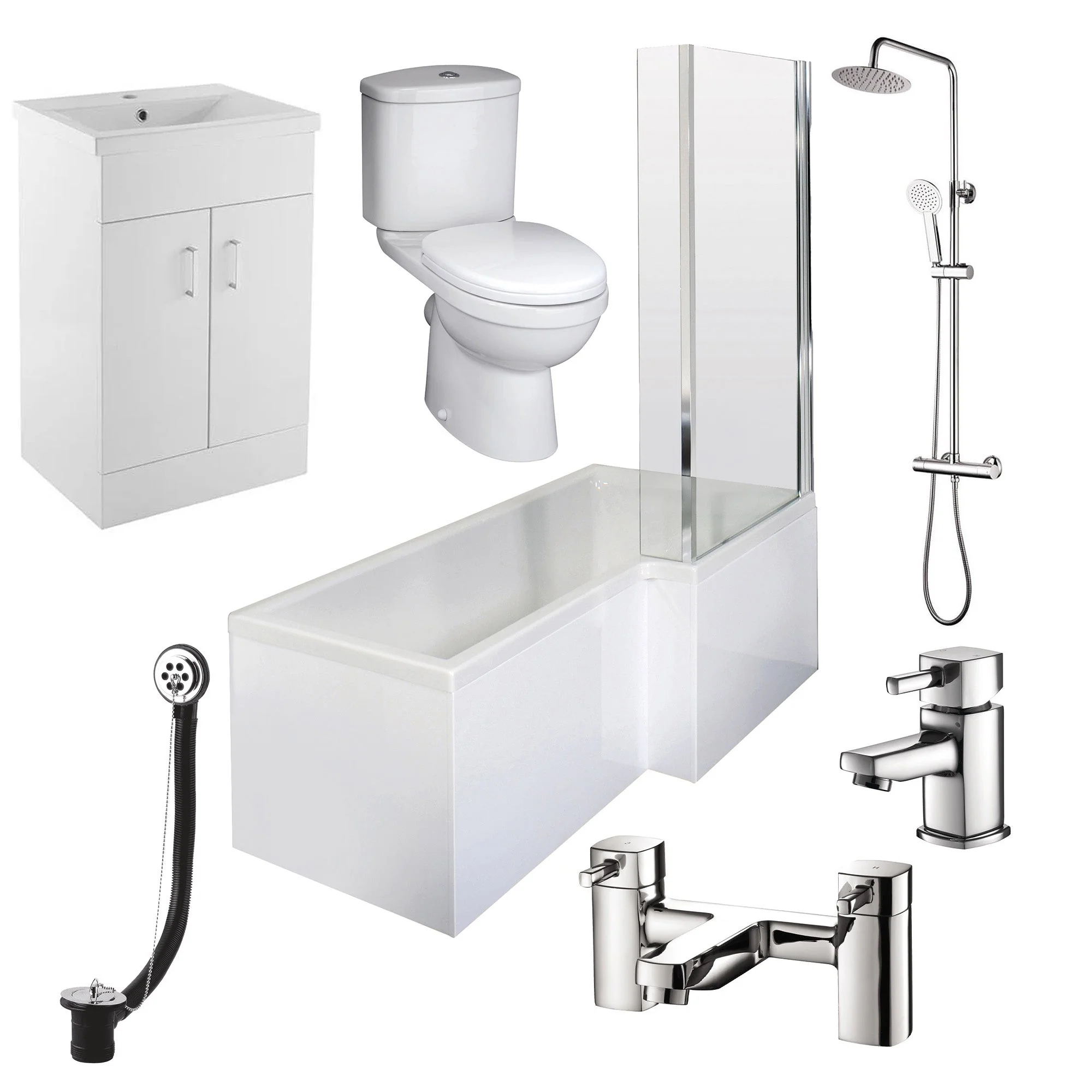

Suite includes :-

• Bath

• Bath Screen
• Bath Front Panel (end Panel is extra)
• 510mm Vanity Unit with Basin

• Close-coupled toilet and seat

• Shower

• Basin mono mixer and waste

• Bath Filler

• Bath waste plug and chain

Technical Specification

Bath

• Length : 1700mm
• Width : 850mm / 700mm
• Height : 560mm
• Style : Contemporary
• Material : High Quality Reinforced Acrylic
• Bath Thickness : 4mm
• Finish : White
• Includes Front Panel

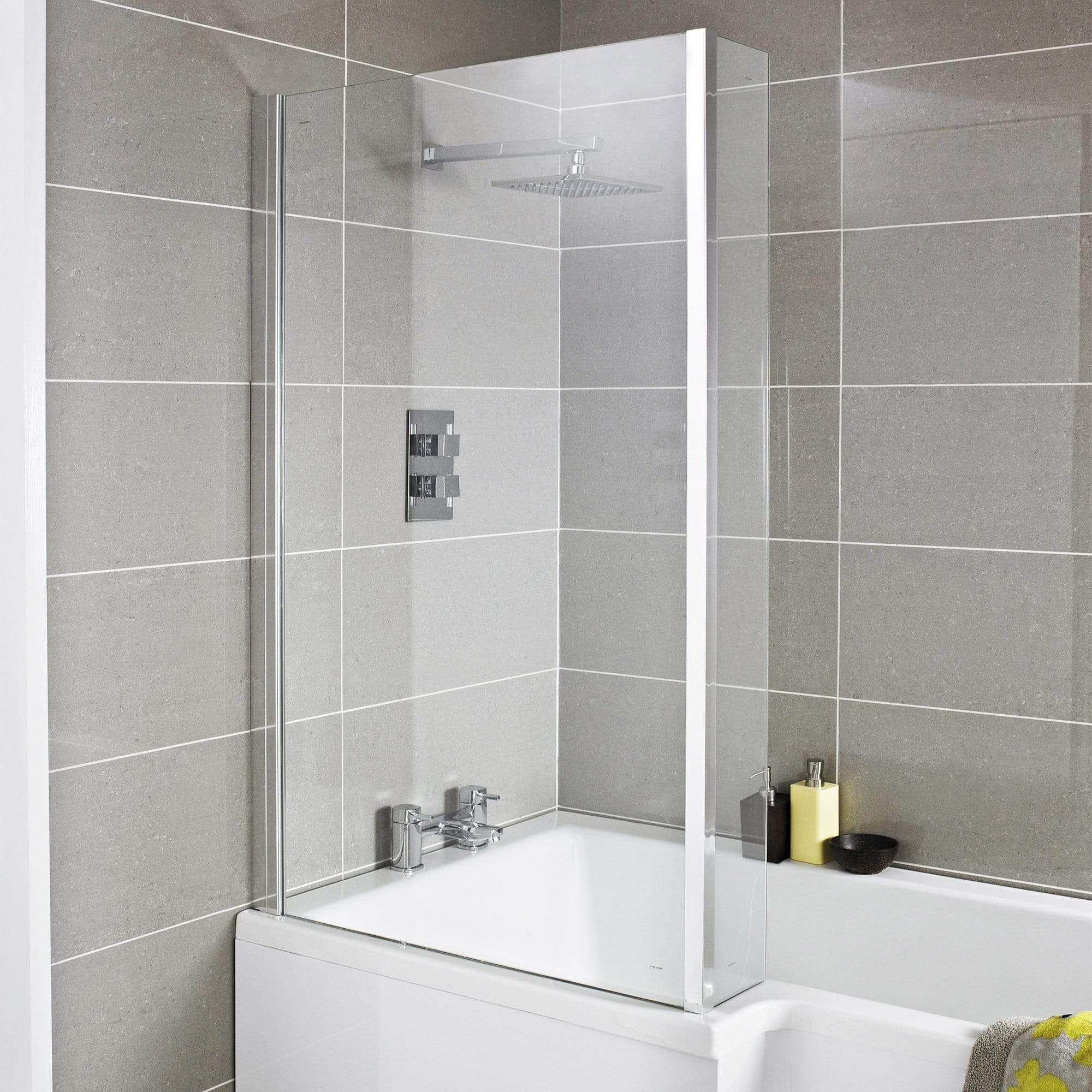

Bath Screen

• Bath Screen Height : 1400mm
• Bath Screen Width : 805mm
• Adjustment Range : 800 - 810mm
• Glass Thickness : 6mm
• Swing Raduis : 550mm
• Bath Screen Design : L-Shaped
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible
• CE Approved : Yes
• Towel Rail : Excluded

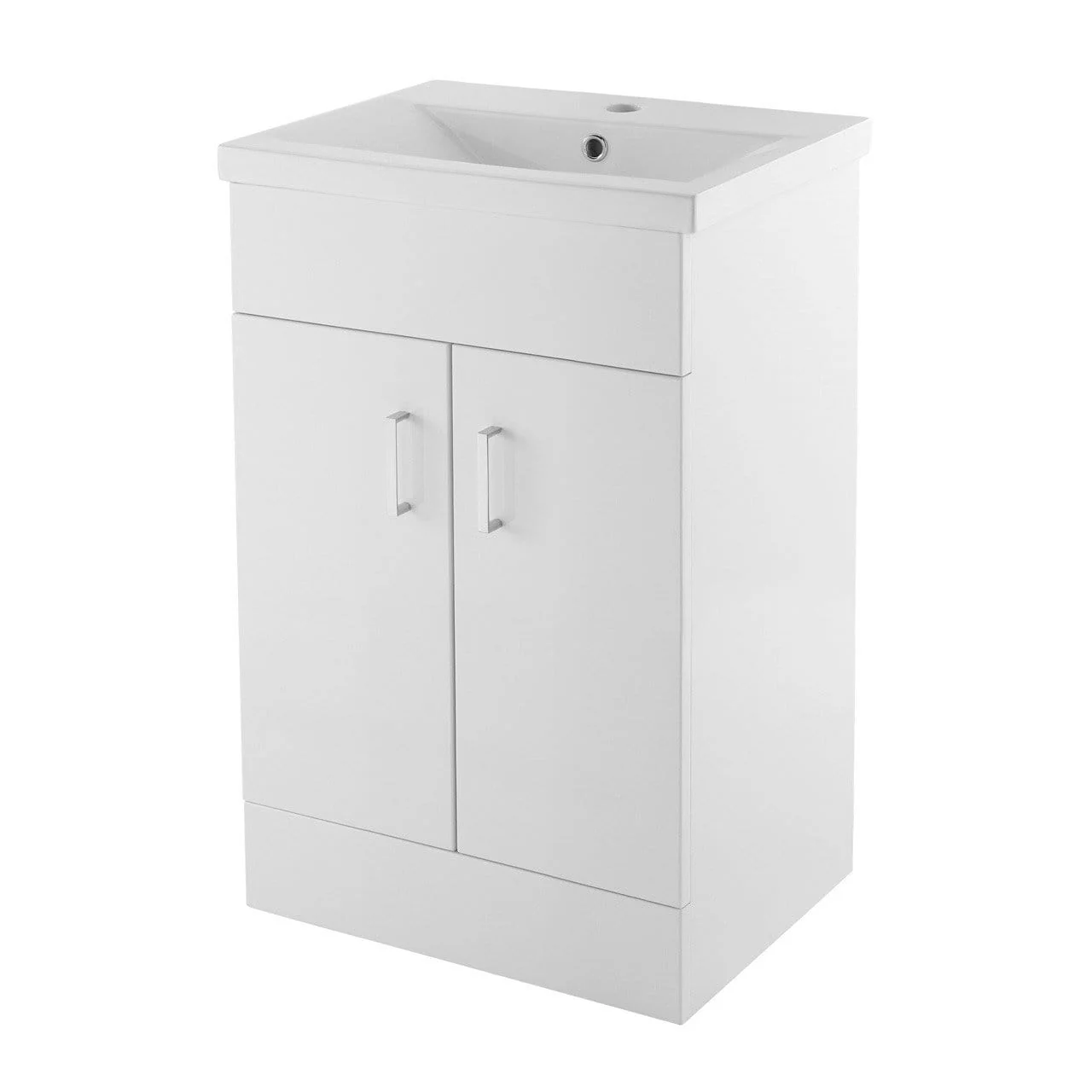

Vanity Unit

• Height : 840mm
• Width : 510mm
• Projection : 390mm
• Furniture Type: Vanity Unit
• Style: Floor Standing
• Finish: Gloss White
• Materials Specification: MDF cabinet
• Unit comes pre-assembled (not flat packed)
• Available Storage: 1 Internal Shelf
• Features: Soft closing door mechanism
• Weight : 35kg

Toilet

• Total Height : 780mm
• Pan Height : 395mm
• Width : 375mm
• Projection : 640mm
• Outlet Connection Size : 185mm
• Toilet Pan Outlet : Horizontal
• Toilet Type : Close Coupled
• Material Specification : Vitreous China
• Cistern Type : 3/6 Litre Dual Flush
• Shape : Round
• Weight : 33.85kg
• Features : 3/6 Litre Dual Flush Cistern
• Includes : Pan, Cistern & Soft Close Seat
• Seat Material Specification : Polypropylene

Shower

• Total Height : 690-1045mm
• Total Width : 263mm
• Total Projection : 344mm
• Material Specification : Brass
• Finish : Chrome
• Features : Ceramic Disc Technology
• Includes : Fixtures & fittings
• Featuring a 200mm Square Overhead Shower
• Length of Shower Head Arm : 344mm
• Inlet Feeds : 15mm
• Pipe Inlet Centres : 150mm
• Adjustable height
• Includes 1.5 metre shower hose
• Easy-clean rubber jets on both the shower head and shower handset
• Working pressure between 0.1 and 5.0 Bar
• Easy installation
• Incorporating diverter to control flow between shower head & handset

Waste

• Includes : Overflow
• Suitable for baths up to 5mm thick
• Connection Size : 1 1/2"
• Waste Pipe Length : 500mm
• Waste Pipe Diameter : 23mm
• Product Diameter : 70mm
