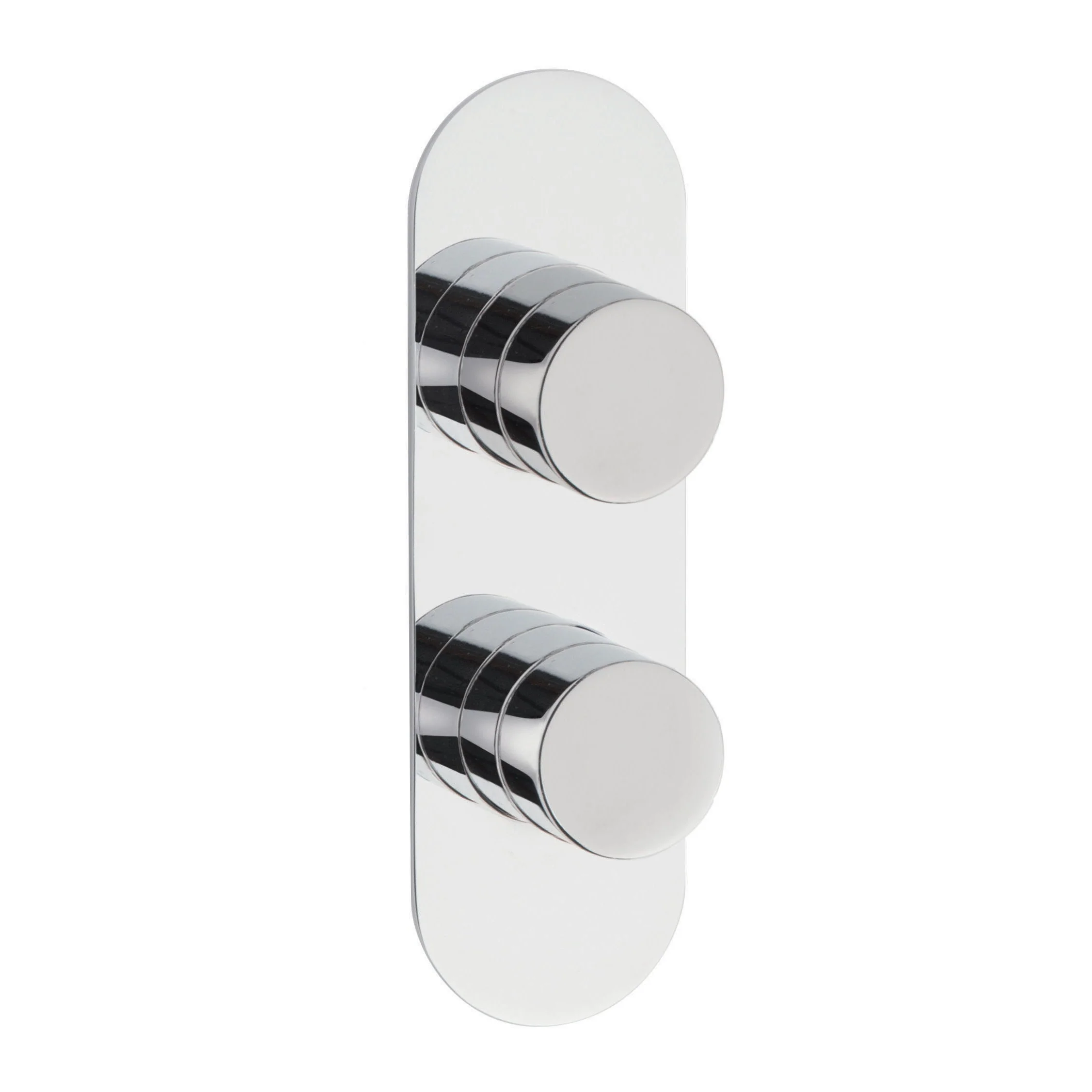

Hudson Reed Indus Twin Thermostatic Shower Valve With Diverter - Chrome
Slimline design. Can be fitted vertically or horizontally. Accurate flow control. Thermostatic control to +/- 2 degrees even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. The unique cartridge is highly resistant to calcium build up - even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates - even at low pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing. Simply remove the cartridge turn 180° and replace.
Technical Specification
- Height: 220 mm
- Weight: 0.2 kg
- Width: 67 mm
- Depth: 135 mm
- Material: Brass Abs
- Mount Type: Recessed/Wall
- Handle Type: Round
- Minimum Operating Pressure (Bar): 0.5 Bar
- Valve/Cartirdge Type: 1/4 Turn
- WRAS Approved: Yes
- WRAS Approval Number: 250602040
- TMV2 Approval Number: 2603035
- TMV3 Approved: No
- Flow Rate at 0.5 Bar (L/min): 13.0000
- Flow Rate at 1 Bar (L/min): 17.0000
- Flow Rate at 2 Bar (L/min): 24.0000
- Flow Rate at 3 Bar (L/min): 27.0000
- Manufacture Guarantee: 20 Years
Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
