Part of the Hudson Reed Tec Crosshead range, this Hudson Reed wall mounted basin mixer delivers smooth water control with polished finishes that hold up to daily use and a contemporary finish. Built with WRAS-approved fittings for safe, regulation-compliant water delivery, complemented by solid brass body for long-lasting, dependable use. A dependable choice for daily use across the bathroom.

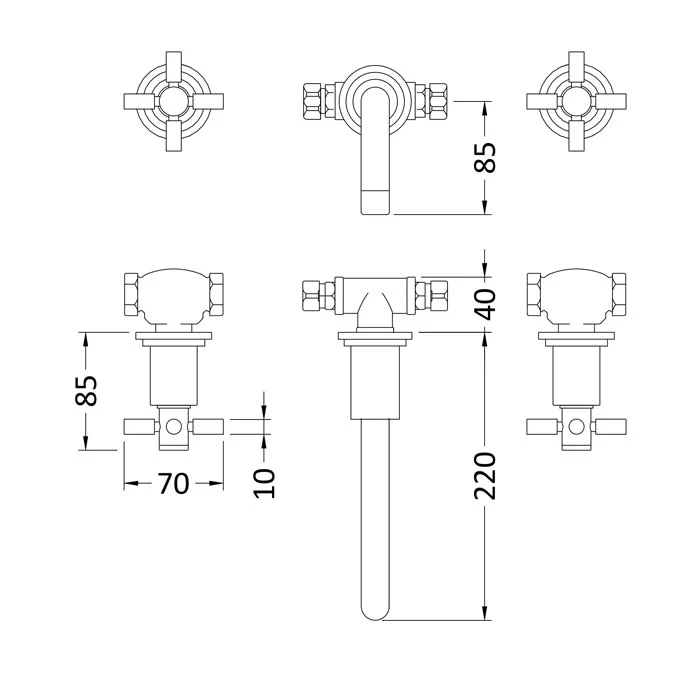

Technical Specification

Height: 113 mm

Weight: 2.23 kg

Width: 255 mm

Depth: 220 mm

Length:

Material: Brass

Waste: No

Mount Type: Wall Hung

Handle Type: Crosshead

Minimum Operating Pressure (Bar): 0.1

Valve/Cartridge Type: 1/4 Turn Ceramic Disc

WRAS Approved: Yes

WRAS Approval Number: 2204064

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 5

Flow Rate at 0.5 Bar (L/min): 12

Flow Rate at 1 Bar (L/min): 16

Flow Rate at 2 Bar (L/min): 22

Flow Rate at 3 Bar (L/min): 27

Tap Holes Required: 3

Tap Spout Projection: 210

Manufacture Guarantee: 20 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
