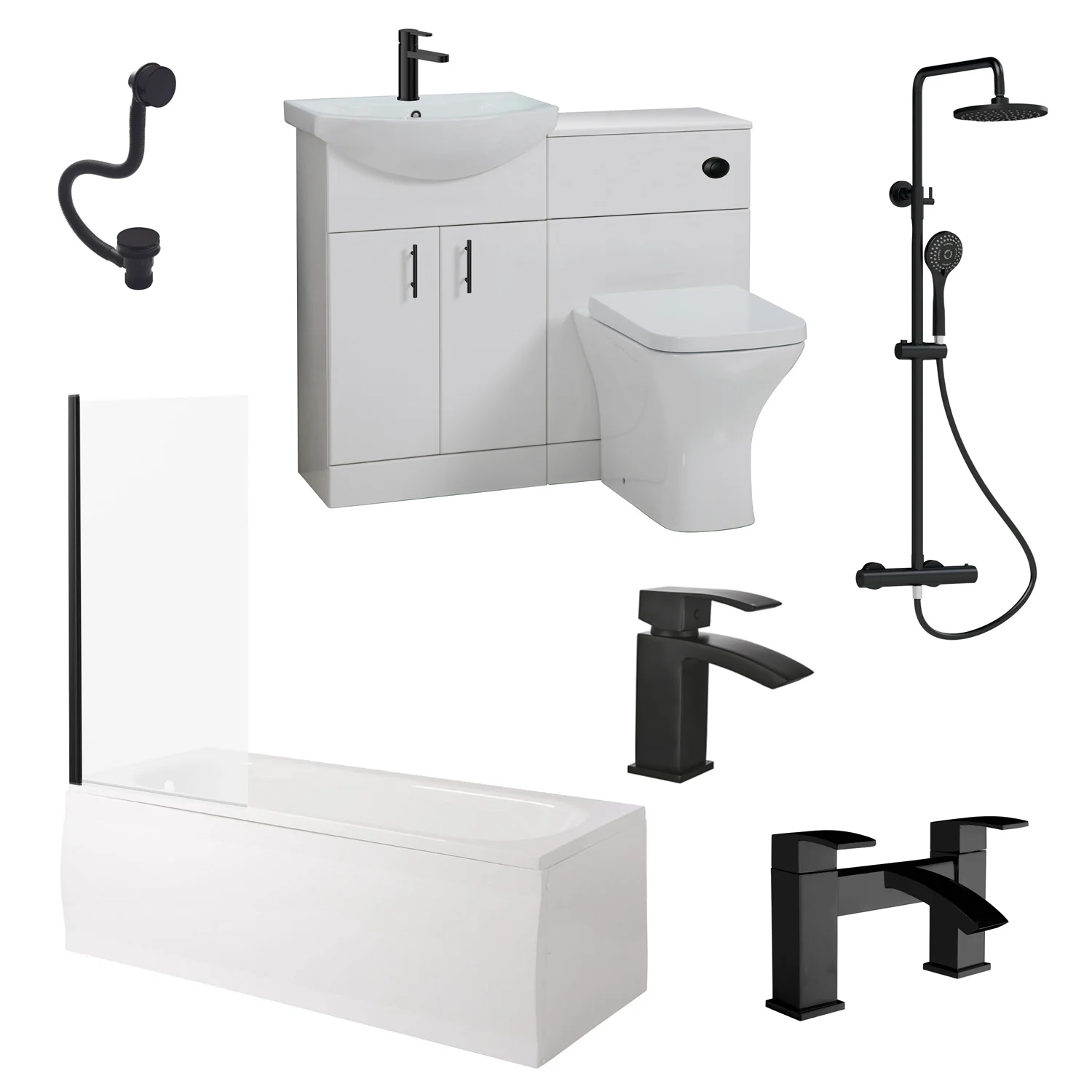

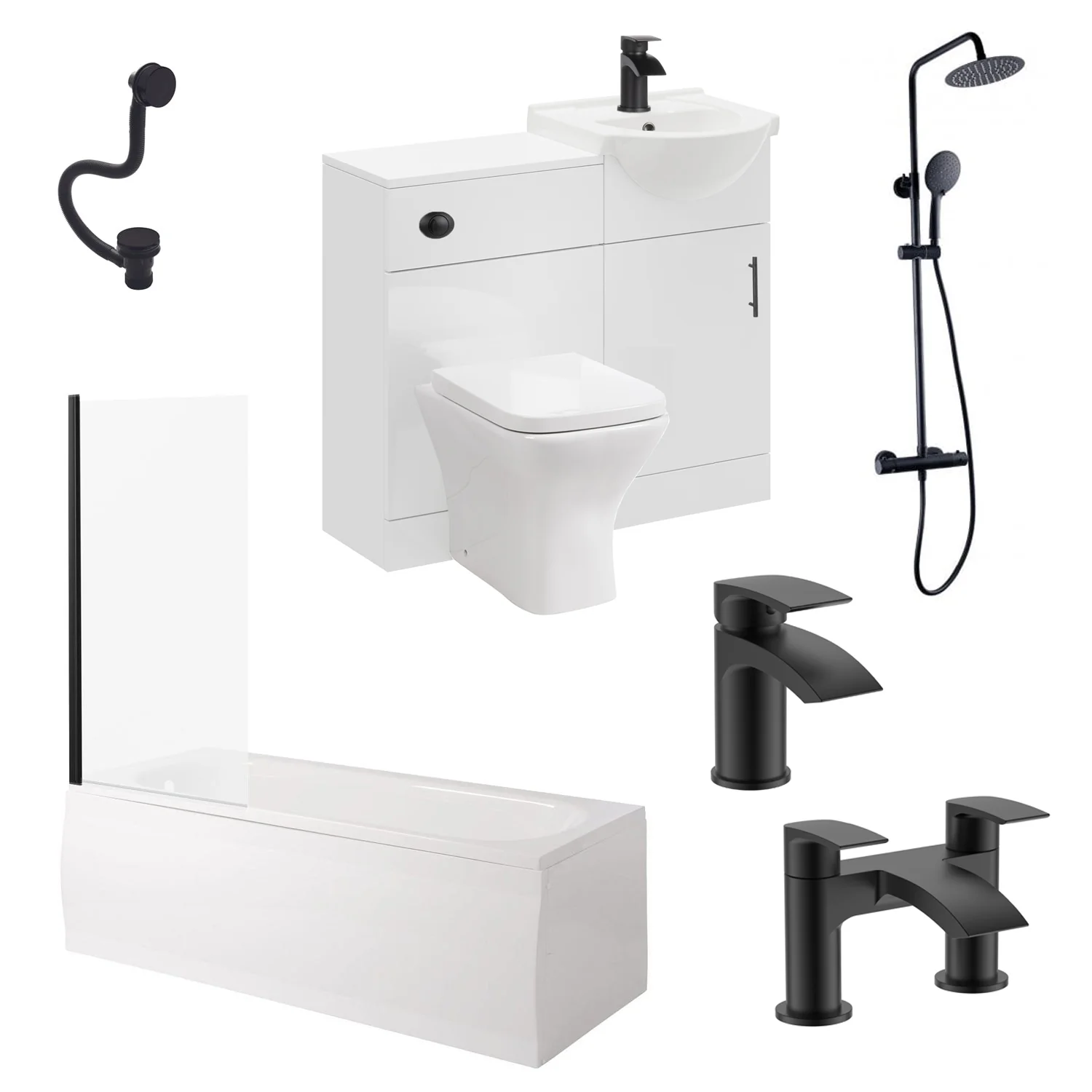

The sleek complete Mayford Matt Black Vanity Shower Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish matt black taps, shower and bath. Each item complements the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-

Bath
Bath Screen
500mm Vanity Unit with Basin - Flat Pack
WC Unit - Flat Pack
Concealed Cistern
Back to Wall Toilet and seat
Shower
Basin mono mixer and waste
Bath Filler
Bath pop up waste

Technical Specification

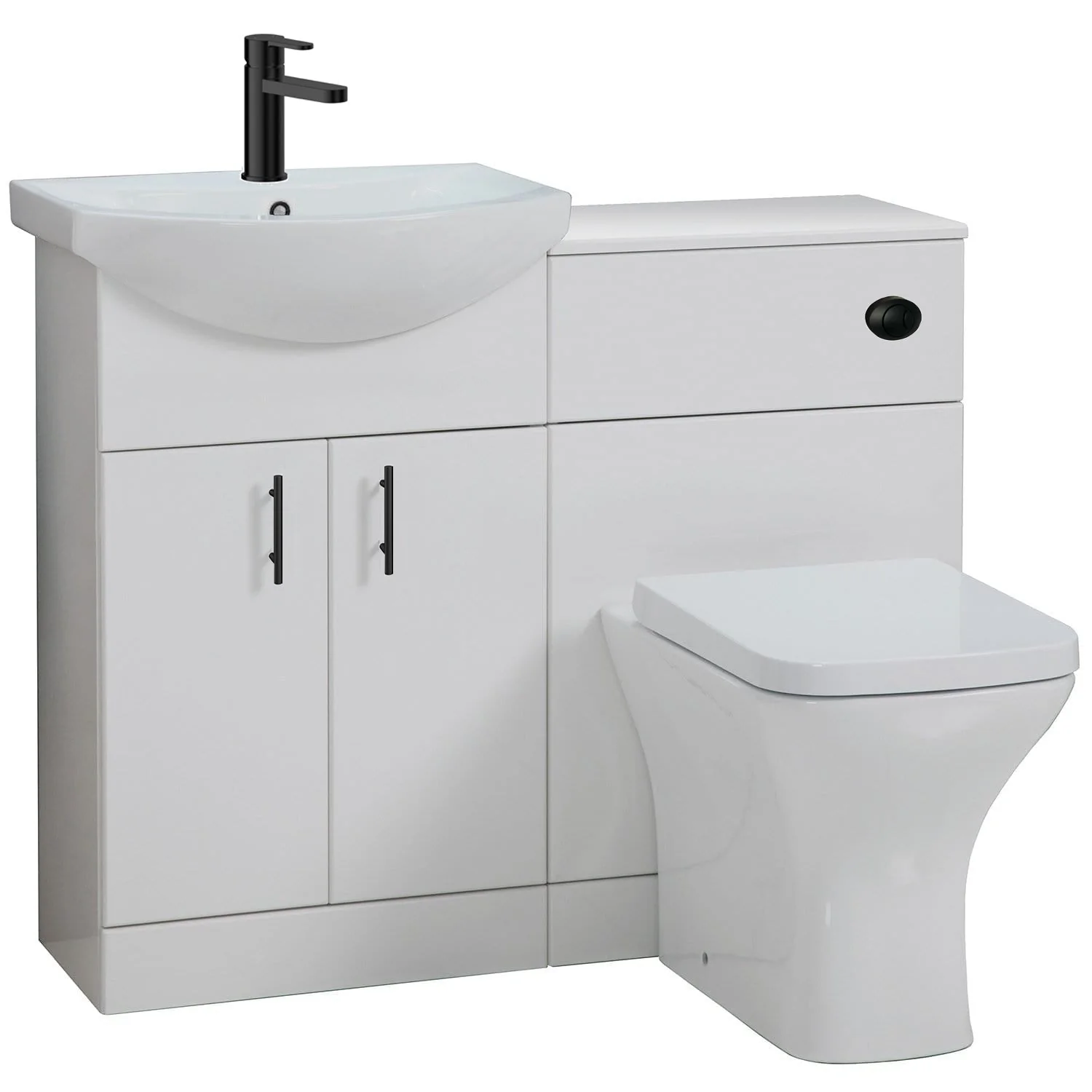

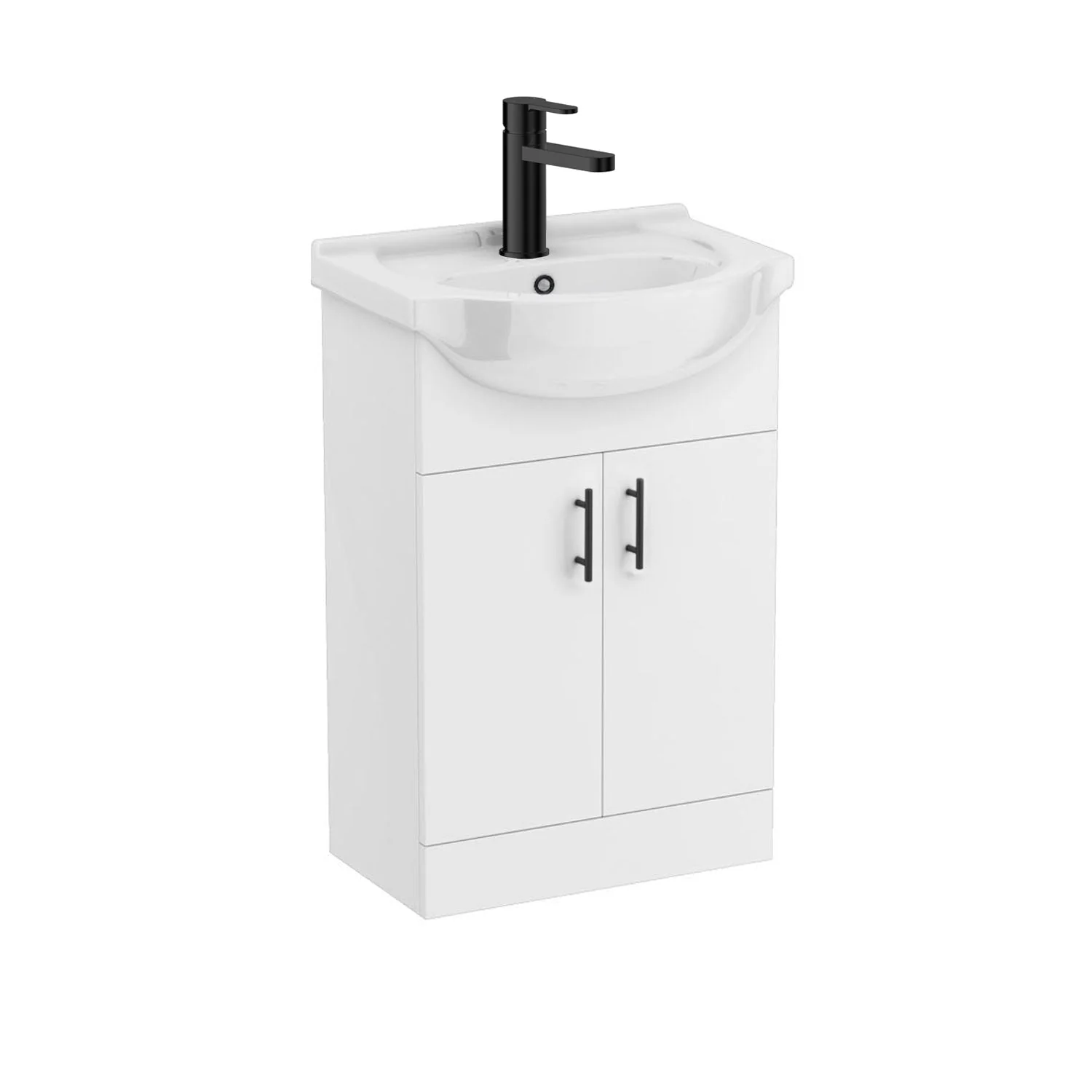

Vanity Unit

• Width : 514mm
• Projection : 300mm
• Finished in High Gloss White
• Double Door Cupboard
• Hinge type : 95 Degree Clip-On Soft Close
• Internal Shelf
• Brushed Brass Handles
• Brushed Brass Overflow
• Supplied Flat Pack for ease of transportation and manoeuvrability

• Ceramic Basin:

  • Width: 550mm
  • Projection: 440mm
  • 1 Tap Hole For Mono Basin Mixer

WC Unit Technical Specification

• Width: 500mm
• Projection: 300mm
• White Gloss Finish
• Supplied Flat Pack for ease of transportation and manoeuvrability

Back to Wall Toilet Technical Specification

• Height : 410mm
• Width : 365mm
• Depth : 500mm
• Pan Trap Style: P Trap
• Toilet Type : Back to Wall
• >Material Specification : Vitreous China
• Shape : Square
• Includes : Pan & Soft Close Seat
• Quick release for ease of cleaning toilet seat

Concealed CisternTechnical Specification

• Height : 303mm
• Width : 334mm
• Depth : 136mm
• Cable concealed dual flush
• Operating Type : Push Button
• Cistern Lever Type : Chrome finished dual flush button
• Button is not fixed but cable connected so can be moved to position of choice
• Cable from cistern to button is 450mm
• Internal overflow
• Water inlet can be left or right hand side
• Material Specification : Plastic
• Connection Size : 1/2" BSP
• Finish : Chrome
• Features : Water Saving Dual Flush 3 / 6 Litre Action
• WRAS approved product

Bath

• Height: 550mm
• Length : 1800mm
• Width : 800mm
• Depth : 420mm
• Thickness 5mm
• Weight : 23kg
• Made in the UK from 100% sanitary grade cast acrylic
• Bath Type: Single Ended
• Colour : White
• Total Water Capacity (L): 225
• Base and underneath rim are reinforced for excellent rigidity
• Waste included: No
• Tap Holes: Can be drilled
• Supplied with adjustable legs and fitting pack

Shower

• The perfect solution to multi-option showering
• Thermostatically controlled
• Round shower head
• Round handset
• Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
• Full thermal protection to prevent scalding in the event of hot or cold water shut off
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• Suitable for high pressure water systems
• Suitable for unvented mains pressure systems
• Suitable for shower pumps
• Manufactured from high quality brass & ABS with luxury matt black finish

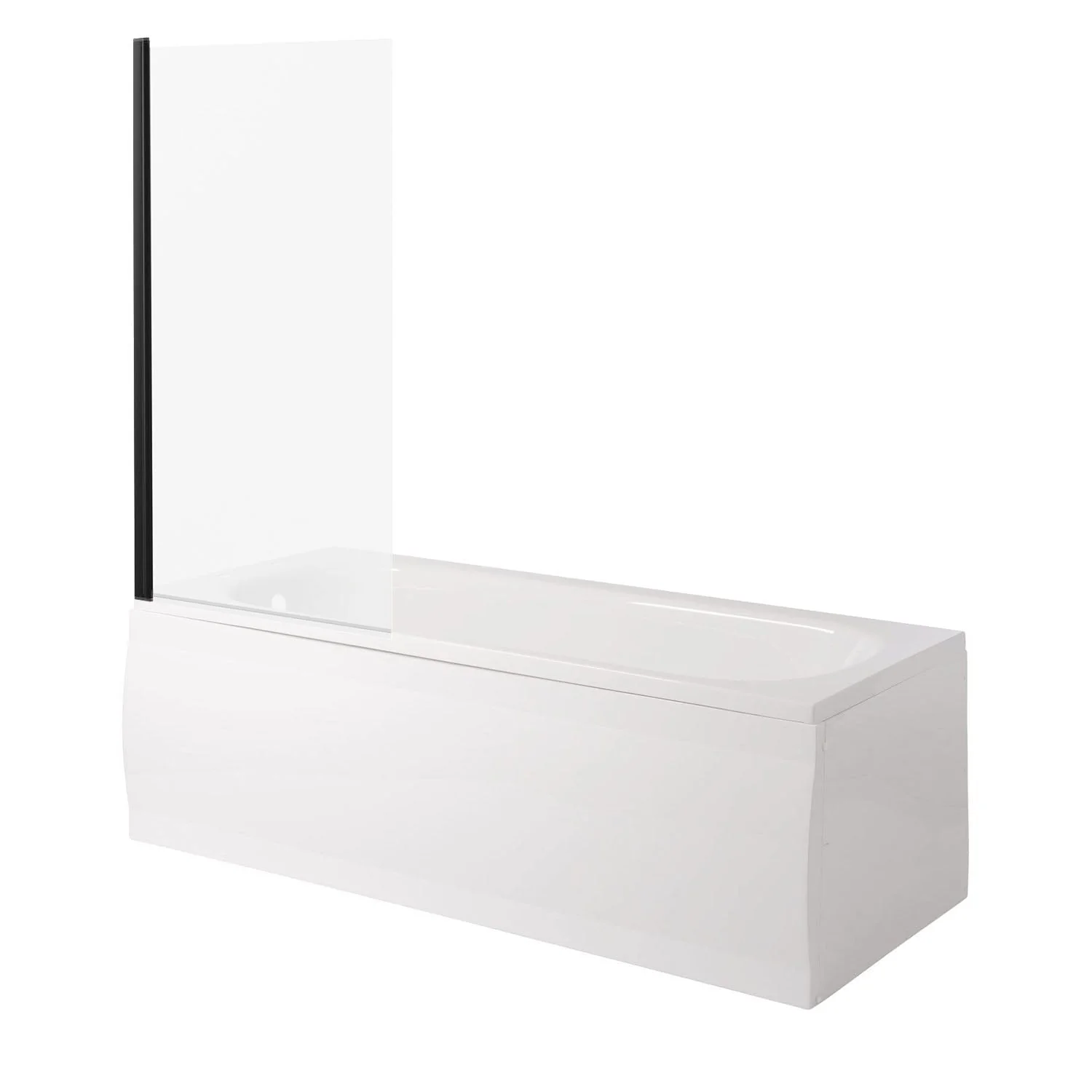

Screen

• Height : 1400mm
• Width : 790mm
• Glass Thickness : 6mm
• Enclosure Adjust: 770 - 785mm
• Swing In Dimensions: 700mm
• Swing Out Dimensions: 700mm
• Bath Screen Design : Straight
• Material : Glass
• Frame Finish : Matt Black
• Style : Modern
• Handed : Reversible

Basin Tap

• Height: 136.5mm
• Tap Spout Reach: 98mm
• Material Specification : Brass
• Finish : Black
• Operation : Single Lever
• Mounting : Deck Mounted
• Tap Hole Diameter: 35mm
• Includes Waste: Yes
• Inlet Connection: 1/2" M10
• Minimum Pressure : 0.2 Bar
• Flow Rate - 0.2 Bar 2.5 l/min
  Flow Rate - 0.5 Bar 5.6 l/min
  Flow Rate - 1.0 Bar 8.2 l/min
  Flow Rate - 2.0 Bar 11.5 l/min
  Flow Rate - 3.0 Bar 14.3 l/min

Bath Tap

• Height: 129.5mm
• Tap Spout Reach: 96.1mm
• Inlet Connection Size: 3/4 BSP
• Shape : Square
• Material Specification : Brass
• Finish : Black
• Operation : Dual Lever
• Tap Holes : 2
• Mounting : Deck Mounted
• Style : Modern
• Minimum Pressure: 0.5 Bar
• Flow Rate - 0.2 Bar 15.1 l/min
  Flow Rate - 0.5 Bar 31.1 l/min
  Flow Rate - 1.0 Bar 44 l/min
  Flow Rate - 2.0 Bar 61.8 l/min
  Flow Rate - 3.0 Bar 76 l/min

Bath Waste

• Manufactured from high quality brass with luxury black finish
• Easy clean design
