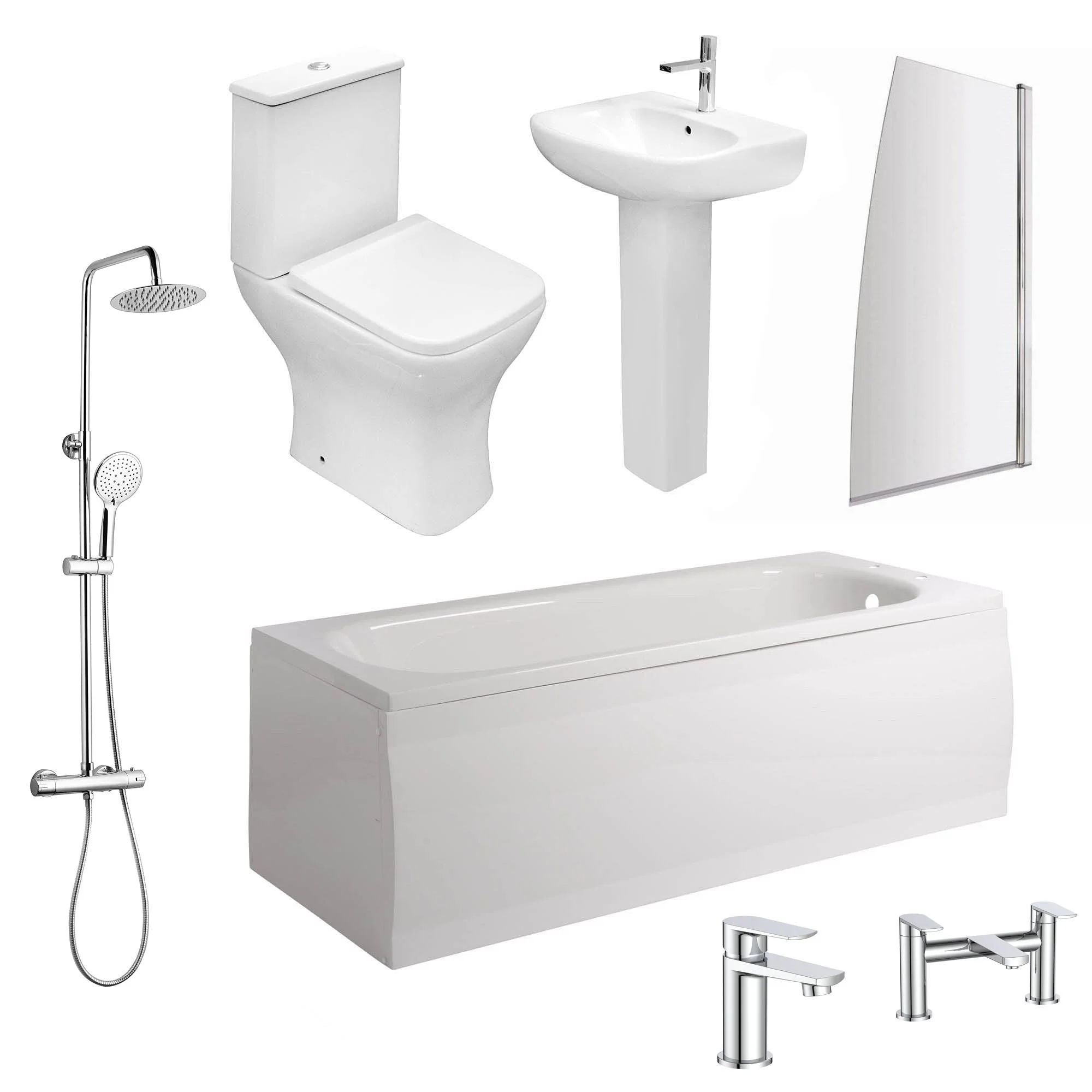

The beautiful complete Mia bathroom suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-

Bath
Bath Screen
Basin and pedestal
Close-coupled toilet and seat
Shower
Basin mono mixer & waste
Bath Filler
Bath waste plug and chain
Optional: Bath Panels

Toilet Technical Specification

• Total Height : 790mm
• Pan Height : 400mm
• Width : 375mm
• Projection : 612mm
• Toilet Pan Outlet : Short Projection Rimless Horizontal Outlet
• Toilet Seat Fixing Centres : 105mm
• Outlet Connection Size : 102mm
• Toilet Type : Close Coupled Rimless Pan
• Material Specification : Vitreous China
• Cistern Type : 3/6 Litre Dual Flush
• Shape : Curved
• Features : Short Projection Toilet
• Includes : Pan, Cistern & Soft Close Seat

Basin & Pedestal Technical Specification

• Total Basin & Pedestal Height : 840mm
• Basin Width : 545mm
• Basin Projection : 455mm
• Basin Bowl Height : 183mm
• Outlet Connection Size : 60mm
• Wall to Waste Outlet : 183mm
• Wall to Tap Hole : 63mm
• Material Specification : Vitreous China
• Number of Tap Holes : 1, Central
• Basin Shape : Curved
• Includes : Overflow

Bath Technical Specification

• Length : 1500mm
• Width : 700mm
• Height : 355mm
• Bath Internal Length : 882mm
• Bath Internal Width : 384mm
• Outlet Connection Size : 52mm
• Material Specification : Acrylic
• Bath Thickness : 4mm
• Capacity : 131 Litres
• Tap Holes : 0 (Suitable for drilling by your installer)
• Waste Position : Side
• Colour : White
• Includes : Legset

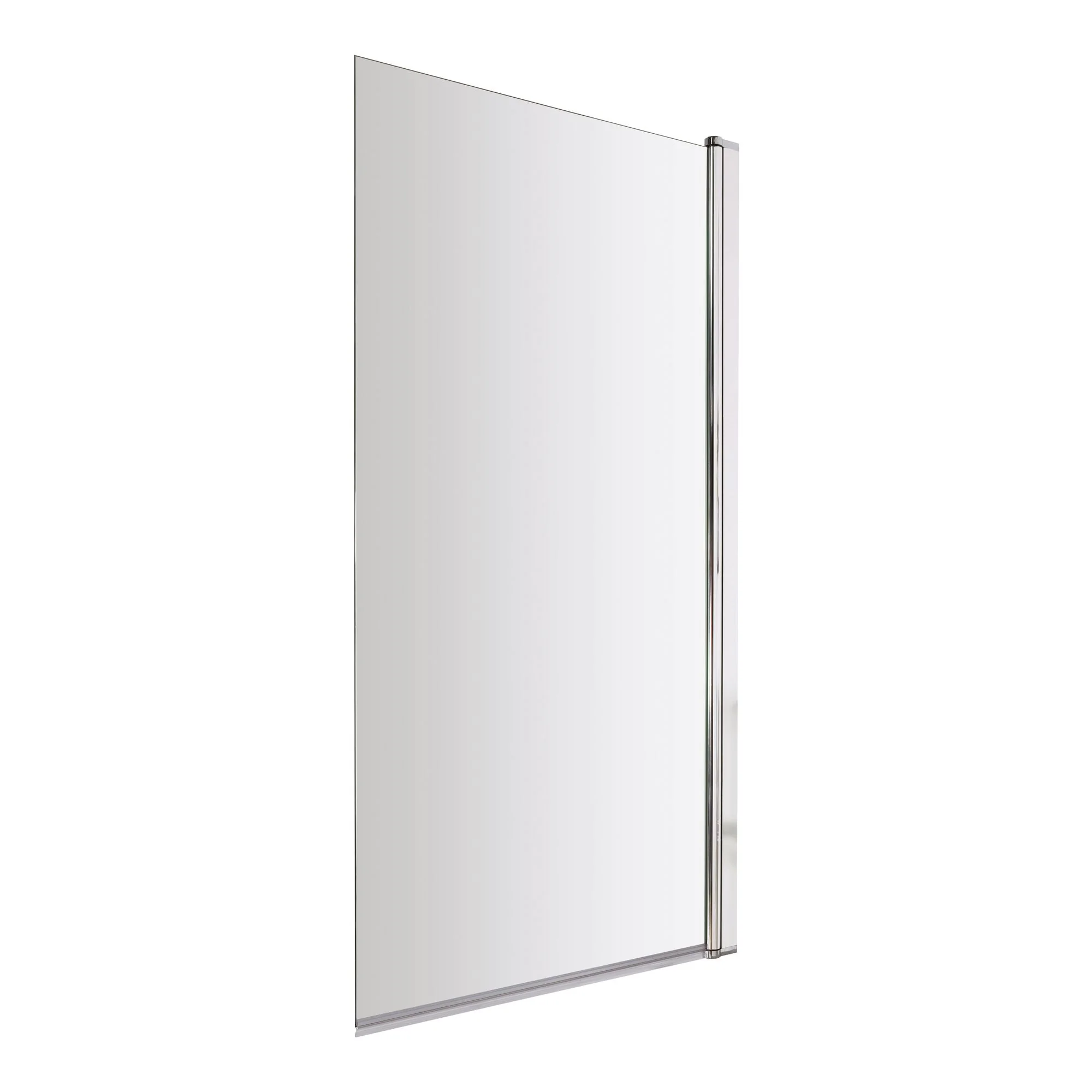

Bath Screen Technical Specification

• Height : 1400mm
• Adjustable Width : 770 to 790mm
• Glass Thickness : 6mm Toughened
• Bath Screen Design : Sail
• Material : Toughened Glass / Aluminium

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible

Shower Technical Specification

• 200mm shower rose swivel head
• Hose and Multi-function Shower Handset on adjustable height bracket
• Thermostatically controlled
• Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
• Full thermal protection to prevent scalding in the event of hot or cold water shut off
• Height : 800-1200mm
• Width : 268mm
• Depth : 330mm
• Rubber easy clean soft rubber nozzles on main
• Minimum 0.5 Bar to 3 bar maximum pressure
• Brass thermostatic cartridge
• Fully thermostatic valve
• Chrome Finish
• Inlet Centres – 150mm
• Anti limescale cartridge
• WRAS Approved
• TMV2 Scheme

Basin Mono Tap Technical Specification

• Height: 124mm
• Depth: 119.5mm
• Material: Brass
• Finish: Chrome
• Handle: Zinc Alloy
• Aerator Spout
• Cartridge: 30mm Ceramic Disc
• Waste Included

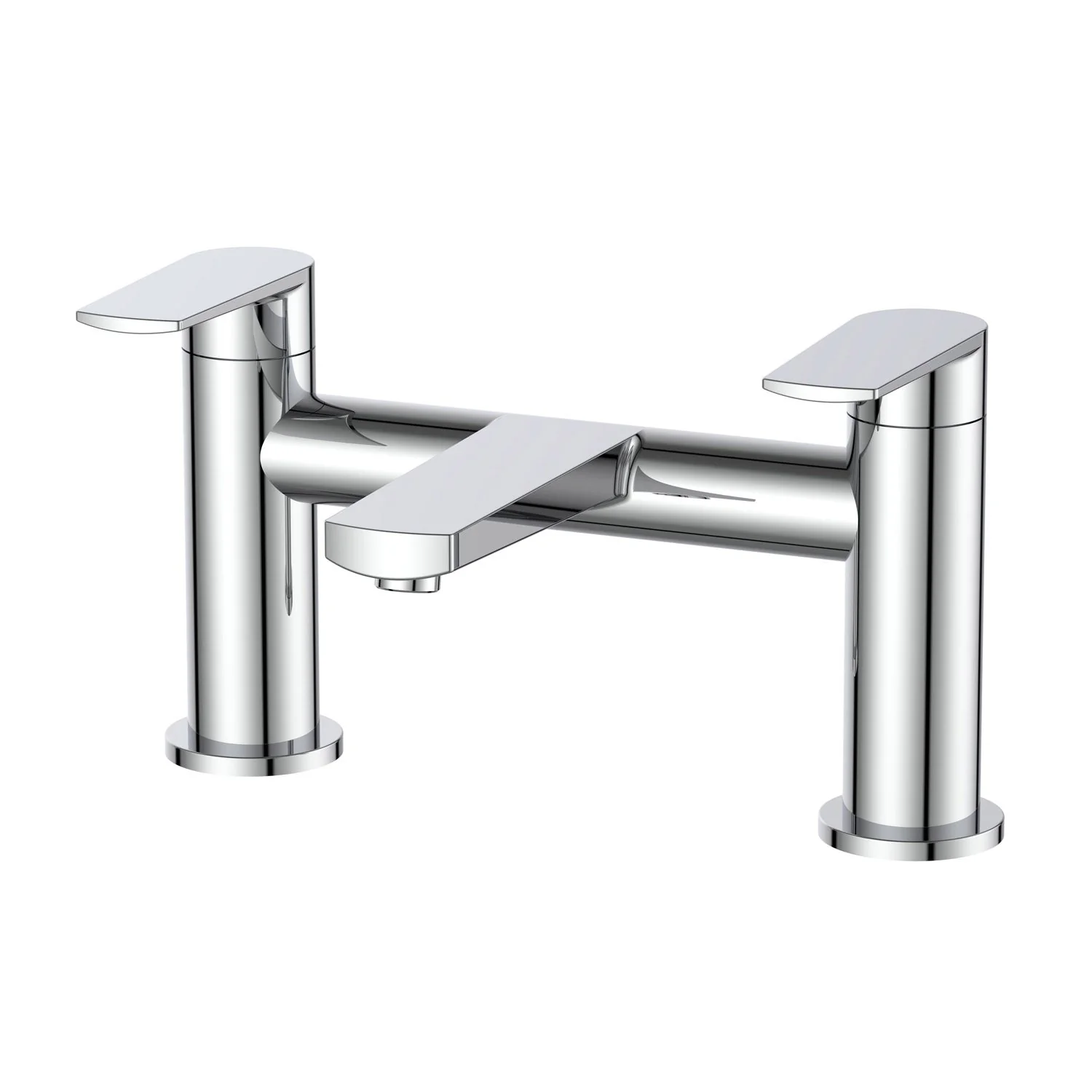

Bath Filler Technical Specification

• Height: 130mm
• Depth: 132mm
• Pipe Centres : 180mm
• Inlet Connection Size : 3/4 BSP
• Material: Brass
• Finish: Chrome
• Handle: Zinc Alloy
• Aerator Spout
• Cartridge: 30mm Ceramic Disc

Bath Waste Technical Specification

• Materials : Brass
• Finish : Chrome
• Connection Size: 1 1/2"
• Height : 70mm
• Width : 70mm
• Depth : 62mm
• Suitable for baths up to 5mm thick
