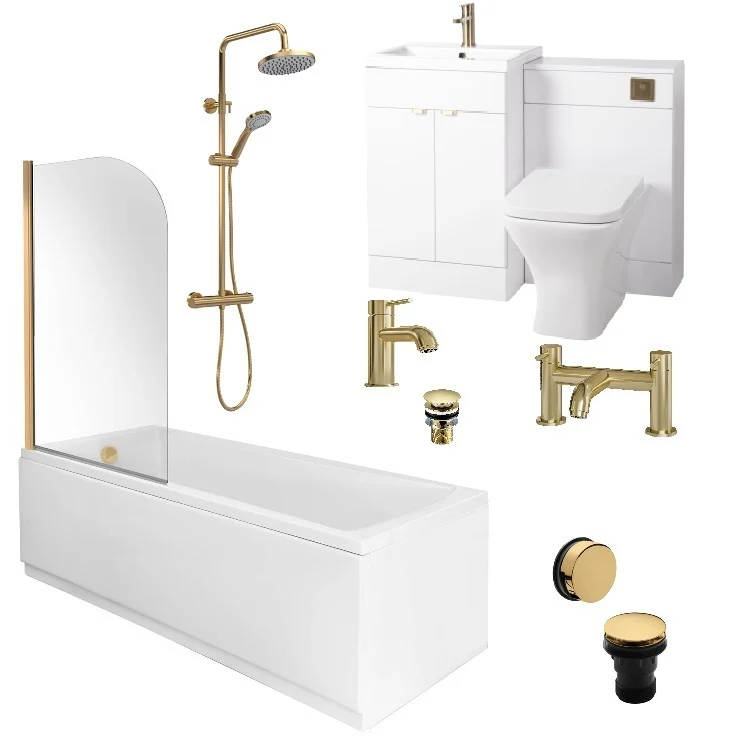

The beautiful Monty bathroom suite, make the most of your bathroom with our stylish and practical modern bathroom suites. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality. Combination set can be fitted either left or right hand basin unit.

Suite includes :-
Bath
500 Vanity Unit
WC Unit
Concealed Cistern
Back to wall toilet and seat
Bath Screen
Shower
Basin Tap & Waste
Bath Filler Tap
Bath Waste

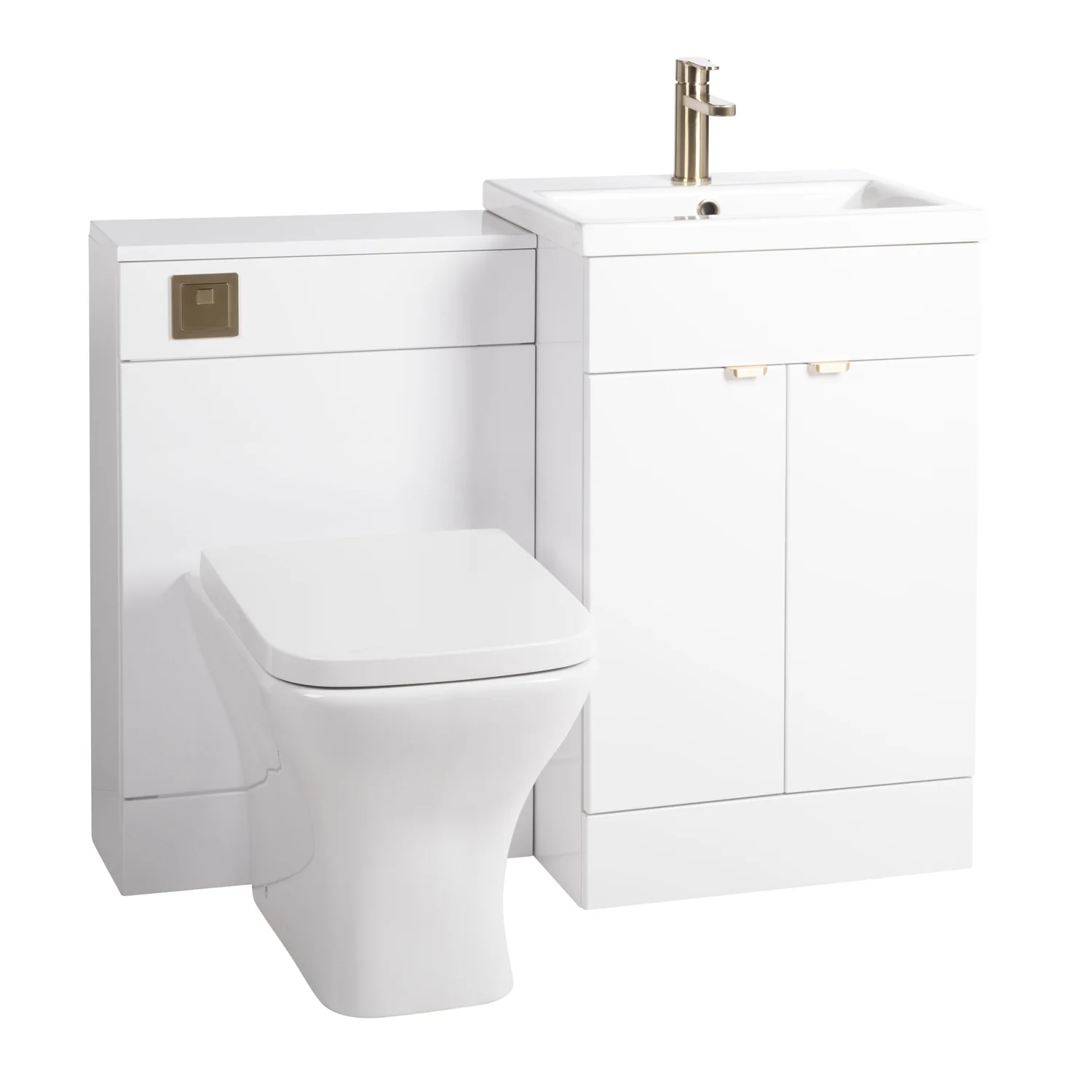

Vanity Unit Technical Specification

• Height (Unit & Basin): 850mm
• Width (Unit & Basin): 500mm
• Depth (Unit & Basin): 440mm
• 2-Door Design
• MDF Unit Construction
• Soft-Close Hinges
• Central Internal Shelf
• Brushed Brass Door Handle
• Includes : Single Tap-Hole Basin
• Supplied rigid

WC Unit Technical Specification

• Height : 766mm
• Width : 500mm
• Depth : 300mm
• Unit supplied undrilled so can be fitted left or right hand position
• Style : Modern, with curved edges
• Material : Moisture Resistant MDF
• Conceals unsightly pipes and cistern

Concealed Cistern Technical Specification

• Height : 303mm
• Width : 334mm
• Depth : 136mm
• Cable concealed dual flush
• Operating Type : Push Button
• Cistern Lever Type : Brushed brass finished dual flush button
• Button is not fixed but cable connected so can be moved to position of choice
• Cable from cistern to button is 450mm
• Internal overflow
• Water inlet can be left or right hand side
• Material Specification : Plastic
• Connection Size : 1/2" BSP
• Features : Water Saving Dual Flush 3 / 6 Litre Action
• WRAS approved product

Toilet Technical Specification

• Height : 400mm
• Width : 370mm
• Projection : 530mm
• Toilet Pan Outlet : Horizontal
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Round
• Includes Toilet Seat

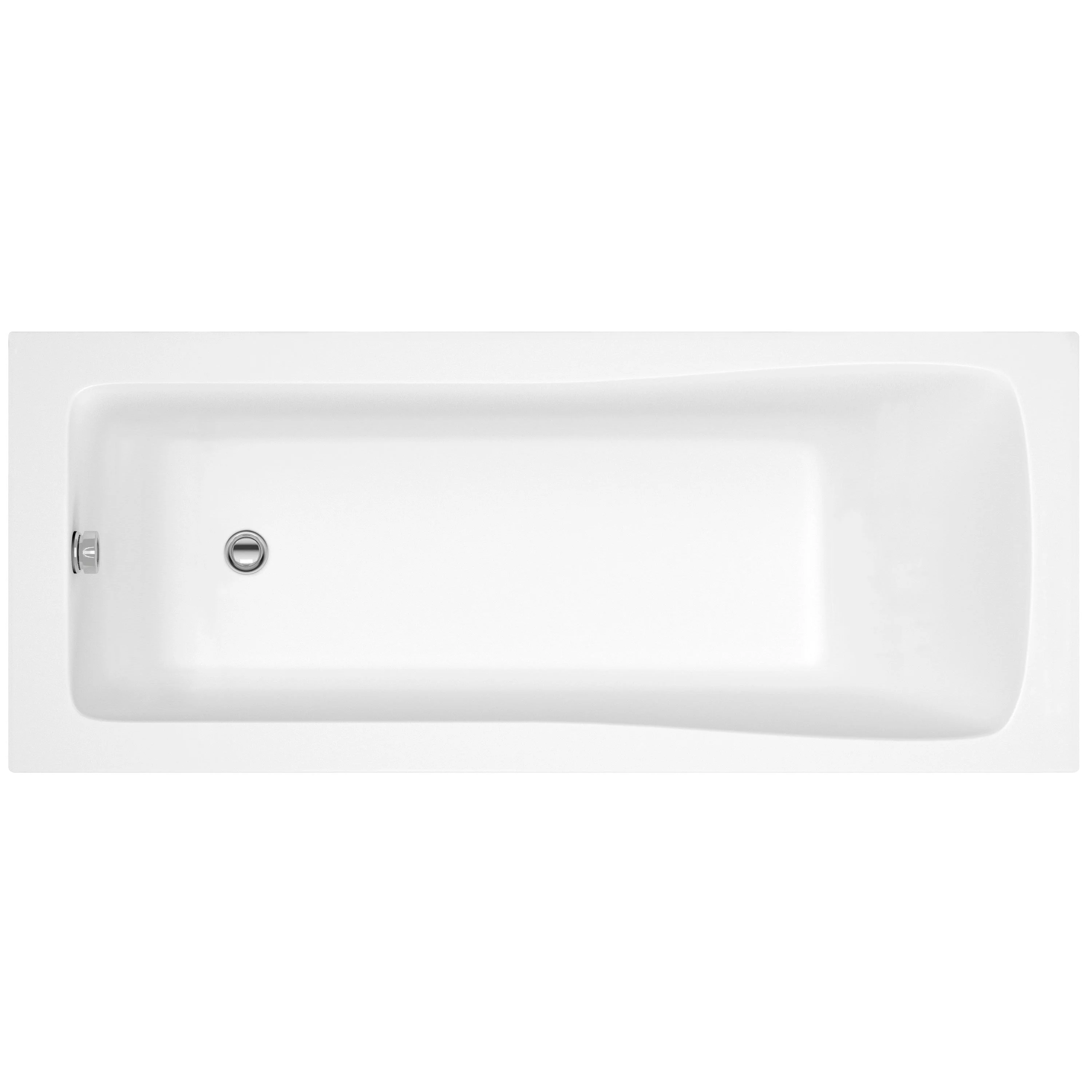

Bath Technical Specification

• Length : 1700mm
• Width : 700mm
• Height : 400mm
• Bath Internal Length : 1030mm
• Bath Internal Width : 350mm
• Material Specification : Acrylic
• Bath Thickness : 4mm
• Capacity : 178 Litres
• Tap Holes : 0 (Suitable for drilling by your installer)
• Waste Position : Side
• Colour : White
• Includes : Legset
• Excludes panels

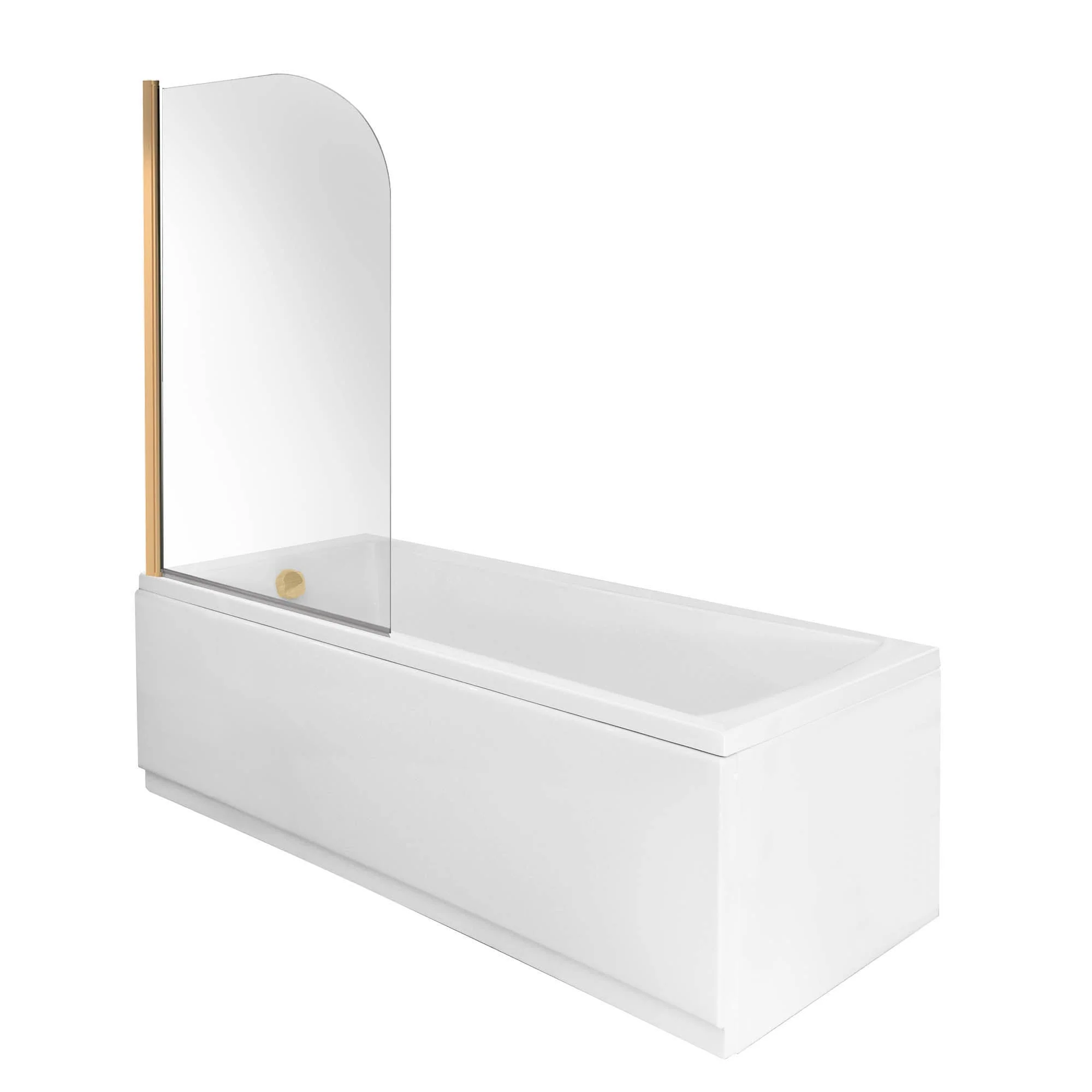

Bath Screen Technical Specification

• Height : 1430mm
• Width : 785mm
• Adjustment Range: 770-785mm
• Glass Thickness : 6mm
• Bath Screen Design : Curved
• Material : Glass

• Frame Finish : Brushed Brass

• Style : Modern
• Handed : Reversible

Basin Tap Technical Specification

• Height : 160mm
• Width : 52mm
• Depth: 147mm
• Height Of Spout: 102mm
• Tap Spout Projection: 110mm
• Finish: Brushed Brass
• Rounded edges for a sleek modern look
• High quality brass internals
• Ceramic disc technology for long life and smooth operation
• Pipe Size: 1/2"
• Operating Pressure: 0.20

• Flow Rate 0.1Bar l/m (Taps)	2.8
  Flow Rate 0.5Bar l/m (Taps)	8
  Flow Rate 1Bar l/m (Taps)	11.6
  Flow Rate 2Bar l/m (Taps)	16.7
  Flow Rate 3Bar l/m (Taps)	20.7

Bath Filler Technical Specification

• Height : 120mm
• Width : 230mm
• Depth: 142mm
• Height Of Spout: 65mm
• Tap Spout Projection: 110mm
• Finish: Brushed Brass
• Rounded edges for a sleek modern look
• High quality brass internals
• Ceramic disc technology for long life and smooth operation
• Pipe Size: 3/4"
• Pipe Centres: 180mm
• Operating Pressure: 1

• Flow Rate 0.1Bar l/m (Taps)	6
  Flow Rate 0.5Bar l/m (Taps)	16.1
  Flow Rate 1Bar l/m (Taps)	23.3
  Flow Rate 2Bar l/m (Taps)	3.3
  Flow Rate 3Bar l/m (Taps)	41.1

Bath Waste Technical Specification

• Waste Height: 70mm

• Waste Operation: Press Top
• Material: Brass
• Colour: Brushed Brass
• Weight: 0.47 Kg

Shower Technical Specification

• Height: 1245mm
• Width: 267mm
• Depth: 429mm
• Finish: Brushed Brass
• Thermostatically controlled
• Manufactured from high quality brass
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 15 mm (1/2" BSP)
• Pipe Centres: 150mm
• Operating Pressure: 1
• Easy Clean Head Yes
• Shower Valve Style Shape: Bar Valve
• Flow Rate 0.5Bar l/m (Showers): 5
• Flow Rate 1Bar l/m (Showers): 7.5
• Flow Rate 2Bar l/m (Showers): 11
• Flow Rate 3Bar l/m (Showers): 14
• Manufacturers 3 year guarantee against faulty workmanship or materials
