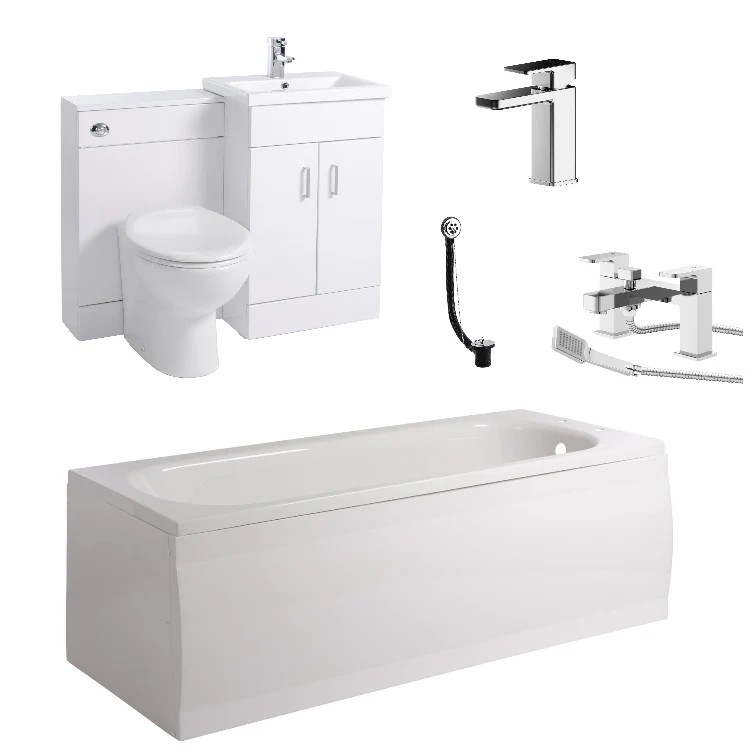

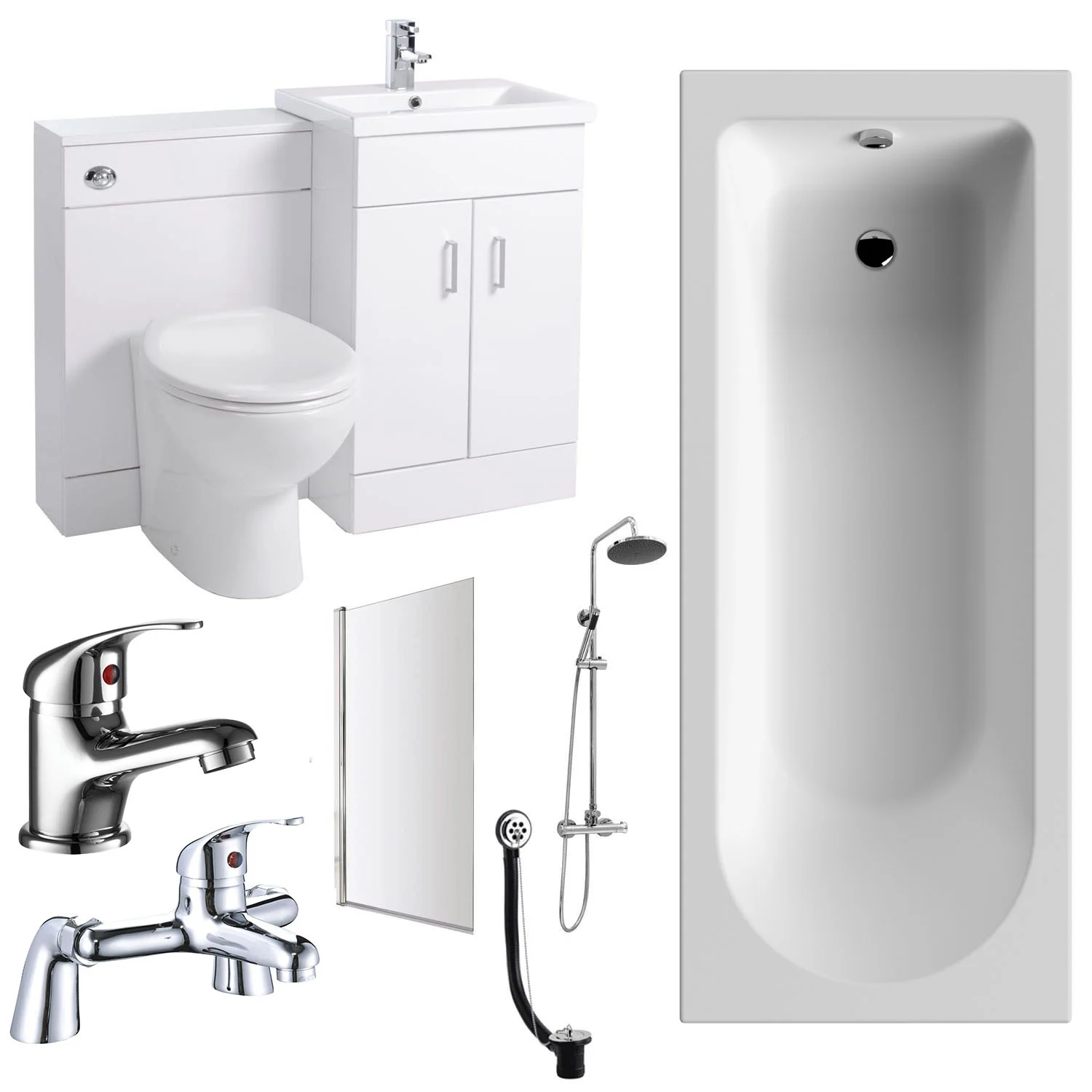

The beautiful complete Nova Vanity Shower Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish taps and bath. Each item complements the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

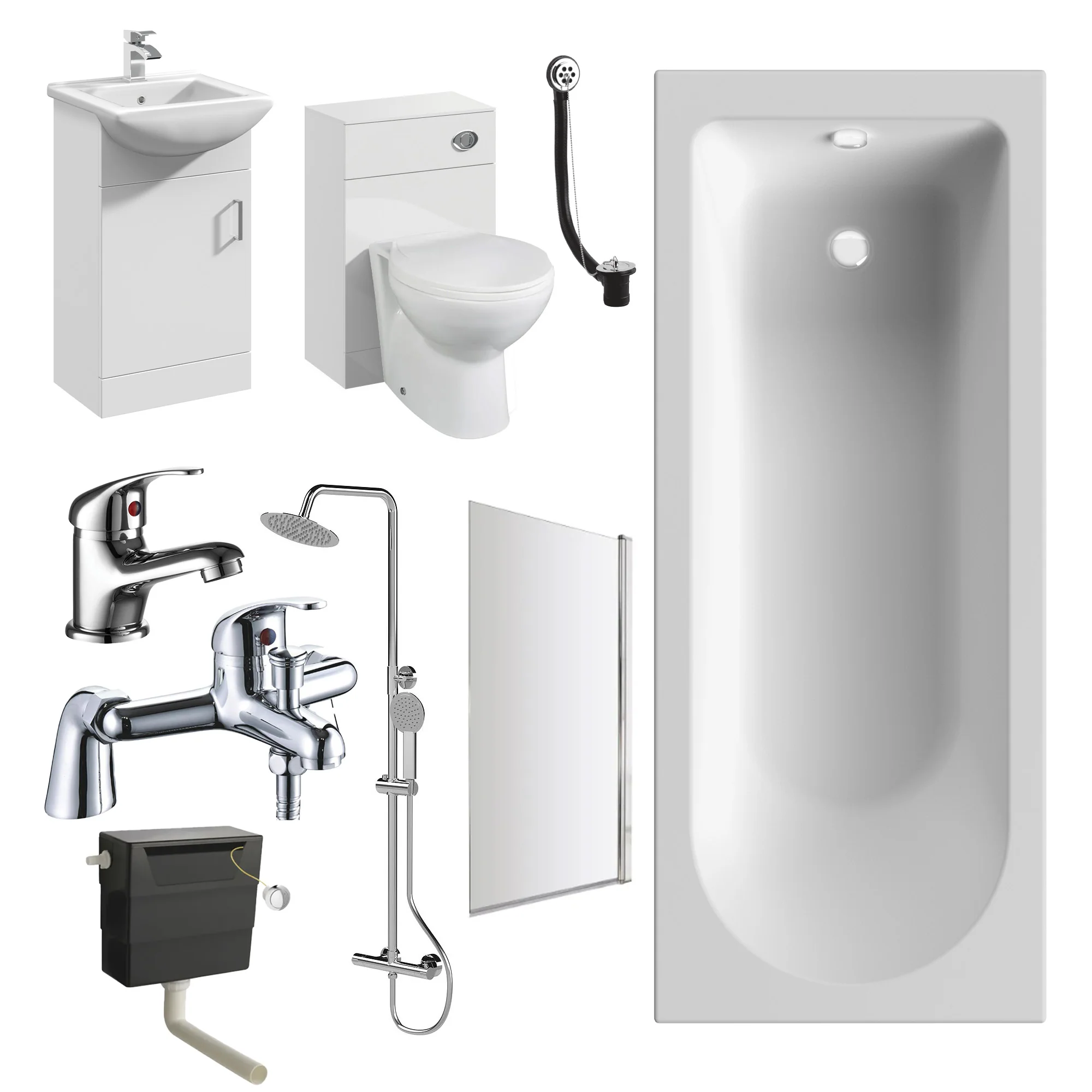

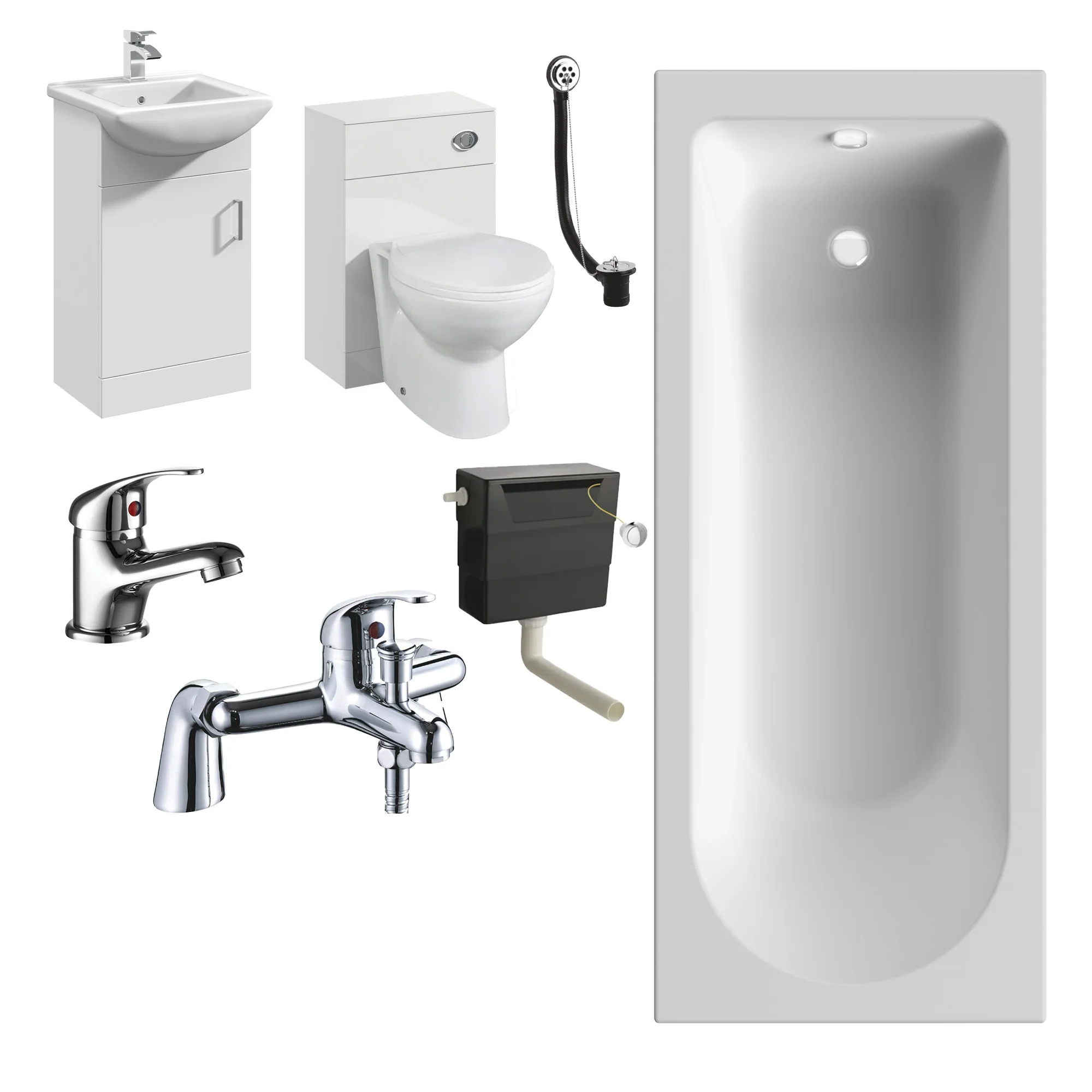

Suite includes :-

Bath
500mm Vanity Unit with Basin
WC Unit
Concealed Cistern
Back to Wall Toilet and seat
Basin mono mixer and waste
Bath Shower mixer, hose and handset
Bath waste plug and chain
Optional: Bath Panels

Technical Specification

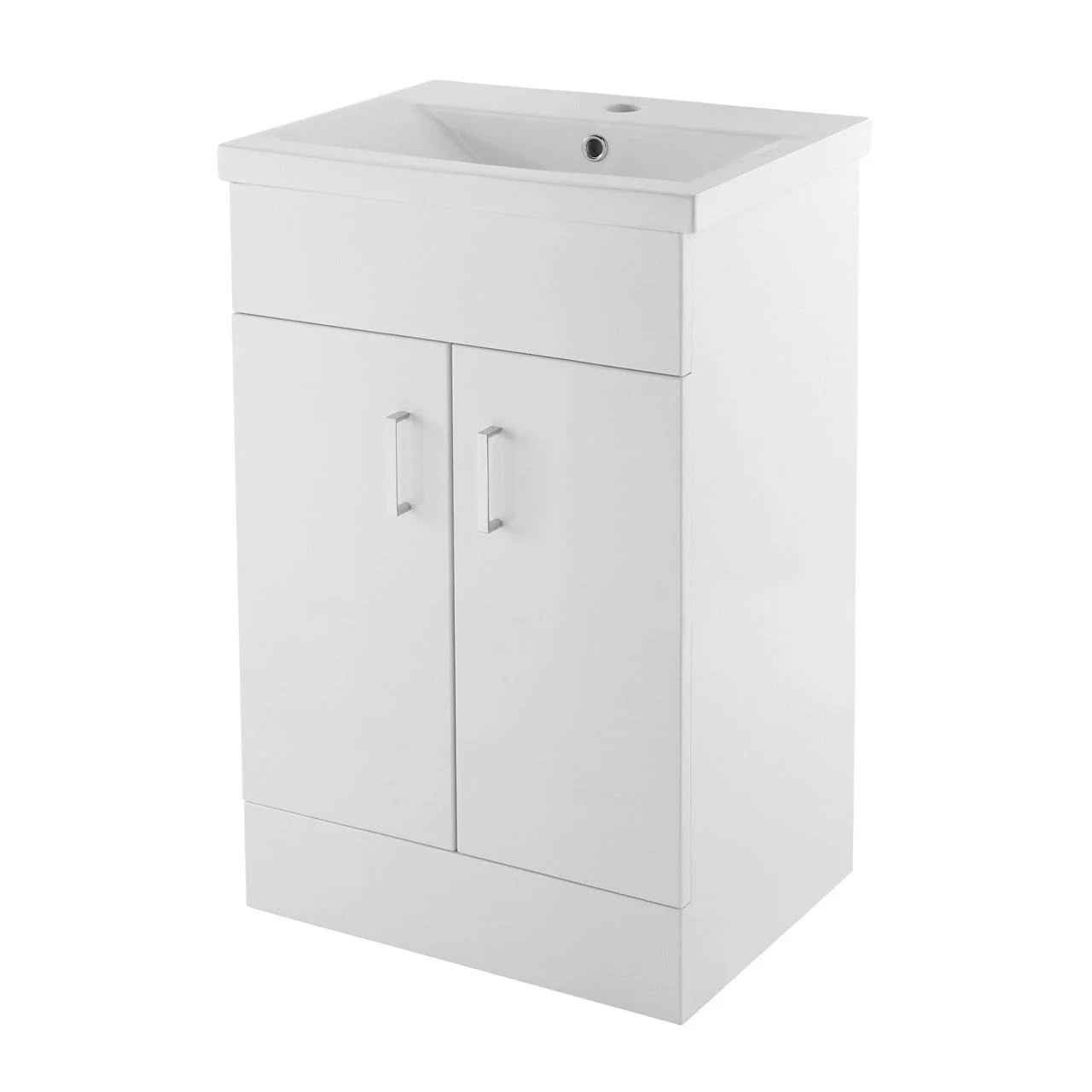

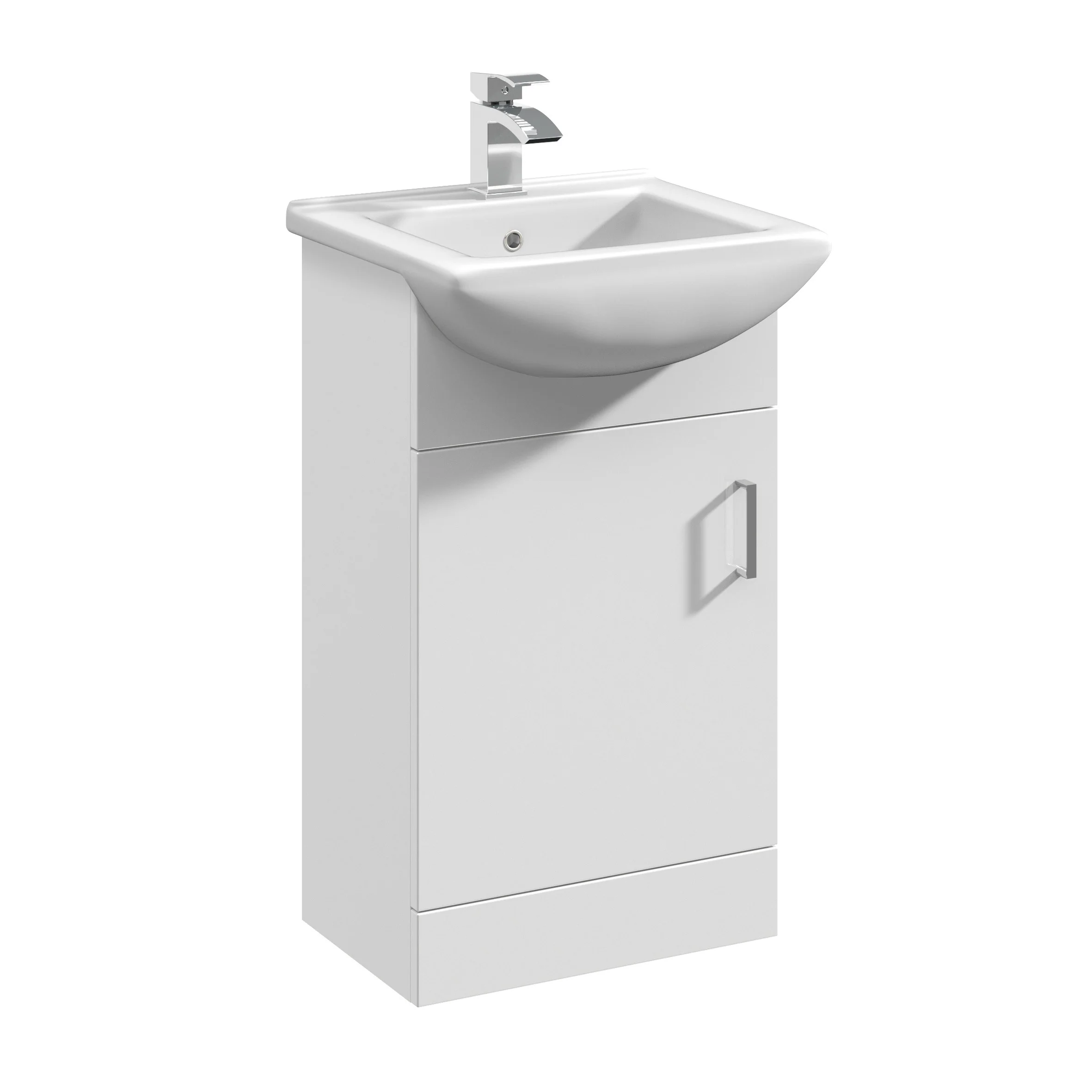

Basin Unit:

• Height: 800mm
• Width: 500mm
• Depth: 400mm
• Materials Specification: MFC Gloss White Finish
• Available Storage: 1 cupboard, double doors with shelf, matt aluminium handles
• D-Shape type handle and hinges included
• Soft Close Doors
• Can be positioned either on the left or the right hand side...or even separately if it suits the installation requirements

Basin:

• Depth: 390mm
• Width: 510mm
• Height: 180mm

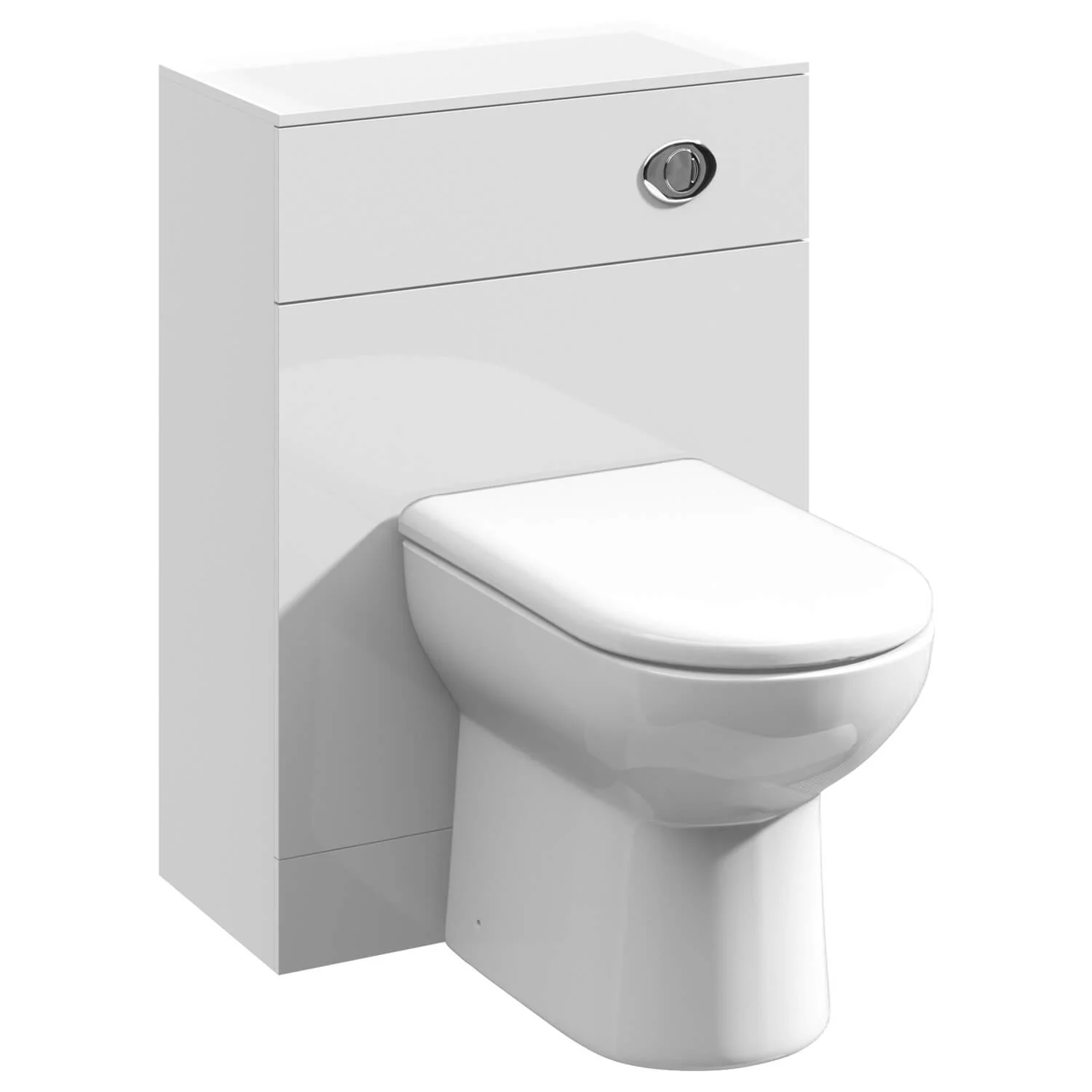

WC Unit:

• Depth: 800mm
• Width: 500mm
• Height: 200mm
• 18mm MDF Construction

• Finish: Gloss White

Concealed Cistern

• Flush: Chrome Finish Push Button
• Features: Suitable for Back to Wall Toilets

Toilet

• Height : 400mm
• Width : 355mm
• Projection : 520mm
• Toilet Pan Outlet : Horizontal
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Round
• Weight : 17kg

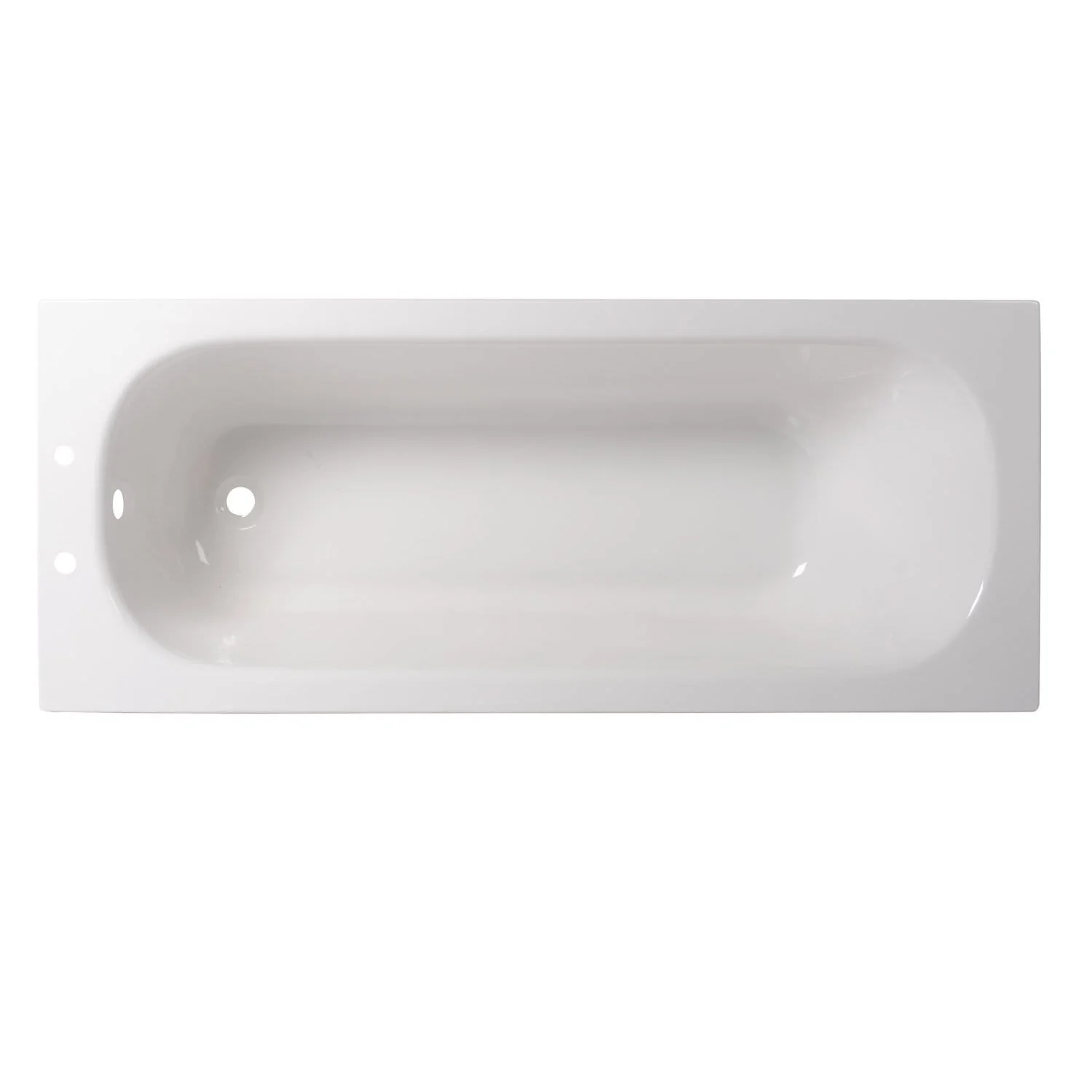

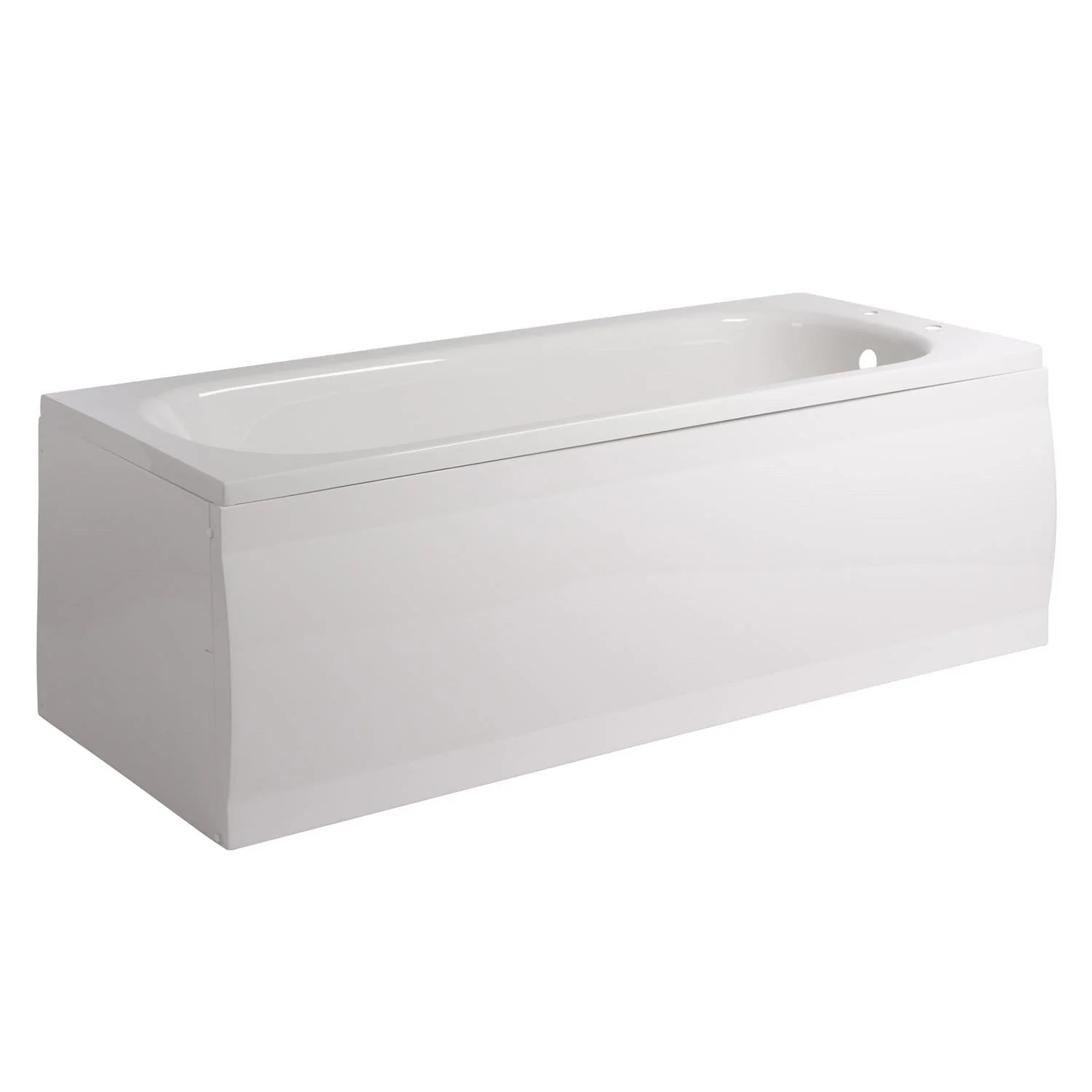

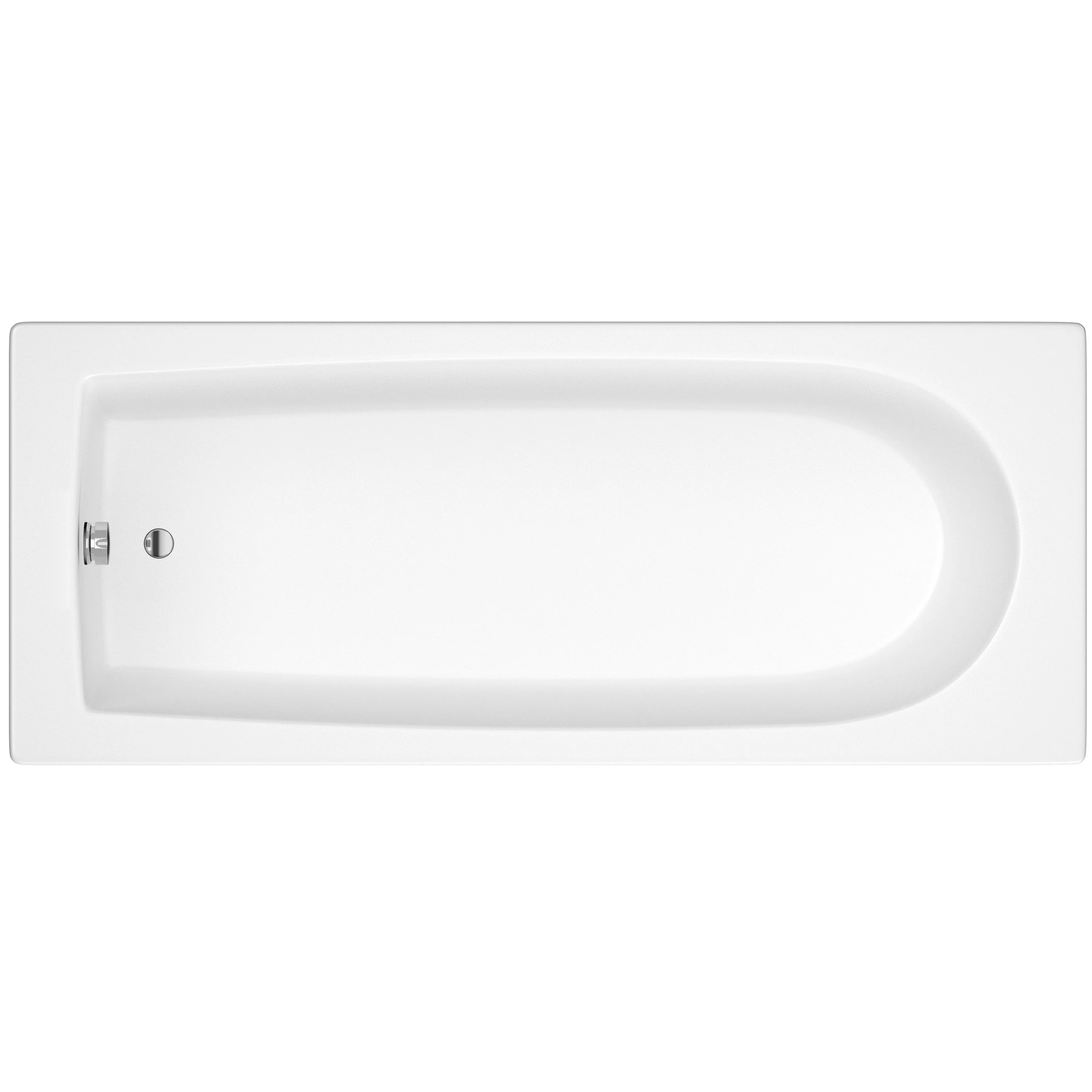

Bath

• Length : 1500mm
• Width : 700mm
• Height : 355mm
• Bath Internal Length : 882mm
• Bath Internal Width : 384mm
• Outlet Connection Size : 52mm
• Material Specification : Acrylic
• Bath Thickness : 4mm
• Capacity : 131 Litres
• Tap Holes : 0 (Suitable for drilling by your installer)
• Waste Position : Side
• Colour : White
• Includes : Legset
• Excludes Bath Panels

Bath Tap

• Height : 159.5mm
• Tap Spout Height : 43mm
• Projection : 186mm
• 35mm ceramic disc cartridge
• Shape : Round
• Material Specification : Brass
• Finish : Chrome
• Operation : Twin Ceramic Disc Lever
• Tap Holes : 2
• Pipe Centres : 180mm
• Mounting : Deck Mounted
• Style : Modern
• Suitable for: Combination Boilers, Pressurised Systems, Pumped Systems. Gravity Fed Systems requires a pump.
• Minimum Pressure : Subject to a minimum of 0.5 Bar
• Includes : Includes Wall Bracket, Shower Hose and Handset

Basin Tap

• Height : 117mm
• Tap Spout Reach : 100mm
• Base to Spout : 51mm
• 35mm cartridge
• Inlet Connection Size : 1/2 BSP
• Material Specification : Brass
• Finish : Chrome
• Shape : Round
• Flow Rate 0.5 Bar : 5.0 Litres per Min
• Flow Rate 1 Bar : 7.0 Litres per Min
• Flow Rate 2 Bar : 10 Litres per Min
• Flow Rate 3 Bar : 12 Litres per Min
• Features : Ceramic Disc Technology
• Includes : Free Pop Up Waste & Flexi Tails
• Weight : 0.64kg

Bath Waste

• Materials : Brass
• Finish : Chrome
• Connection Size: 1 1/2"
• Height : 70mm
• Width : 70mm
• Depth : 62mm
• Suitable for baths up to 5mm thick
