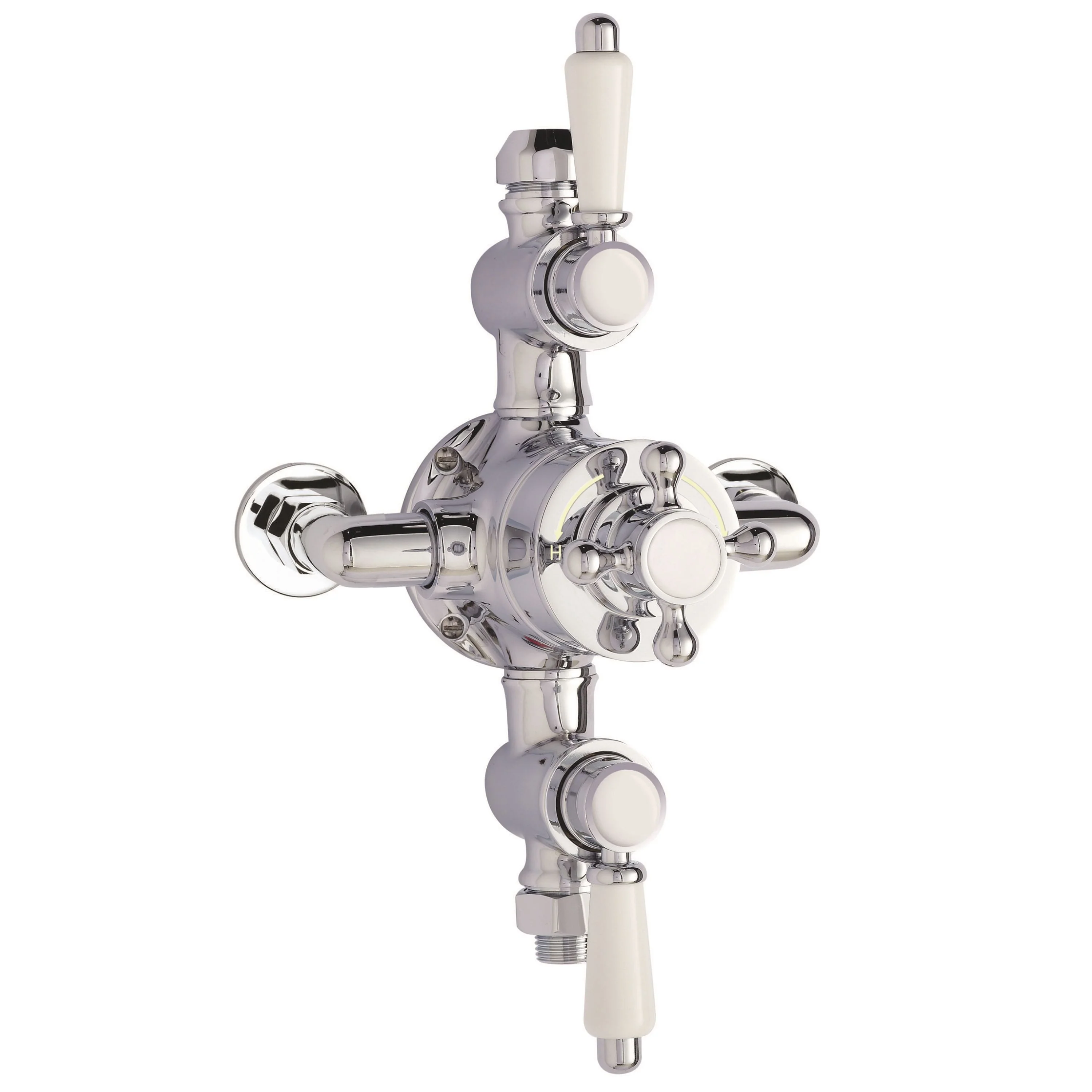

Bring a Victorian sensibility to your bathroom with this traditional shower. Can be fitted vertically or horizontally. Accurate flow control. Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates. In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding. The unique cartridge is highly resistant to calcium build up - even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates - even at low pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from solid brass.

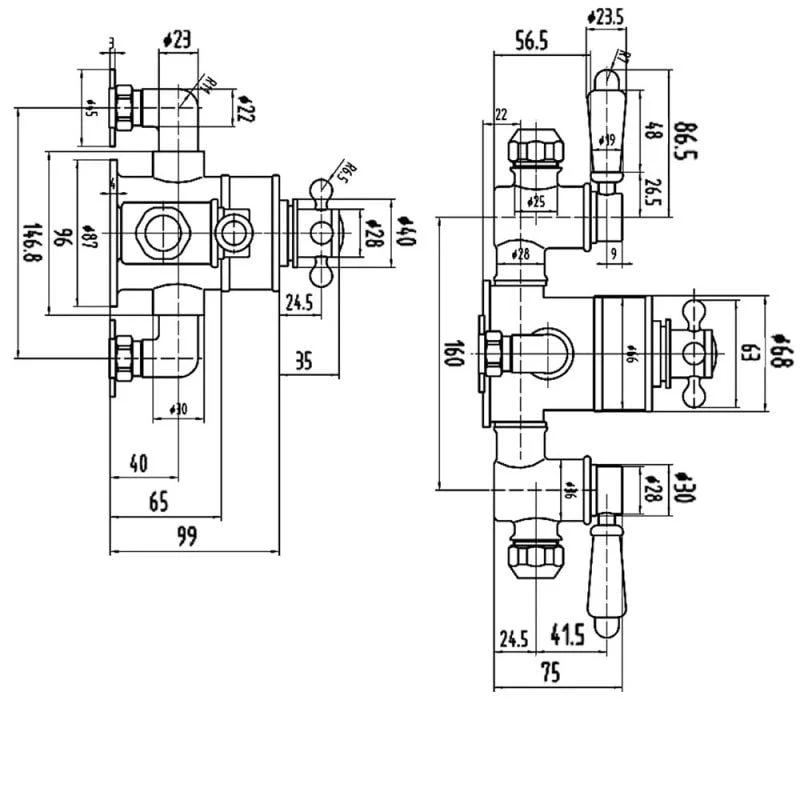

Technical Specification

Height: 333 mm

Weight: 3.7 kg

Width: 179 mm

Depth: 134 mm

Material: Brass

Mount Type: Surface/Wall

Handle Type: Crosshead/Lever

Minimum Operating Pressure (Bar): 0.1 Bar

Valve/Cartirdge Type: 1/4 Turn

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 4.5000

Flow Rate at 0.5 Bar (L/min): 13.0000

Flow Rate at 1 Bar (L/min): 18.5000

Flow Rate at 2 Bar (L/min): 26.0000

Flow Rate at 3 Bar (L/min): 33.0000

Pipe Centres: 146.8

Manufacture Guarantee: 5 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
