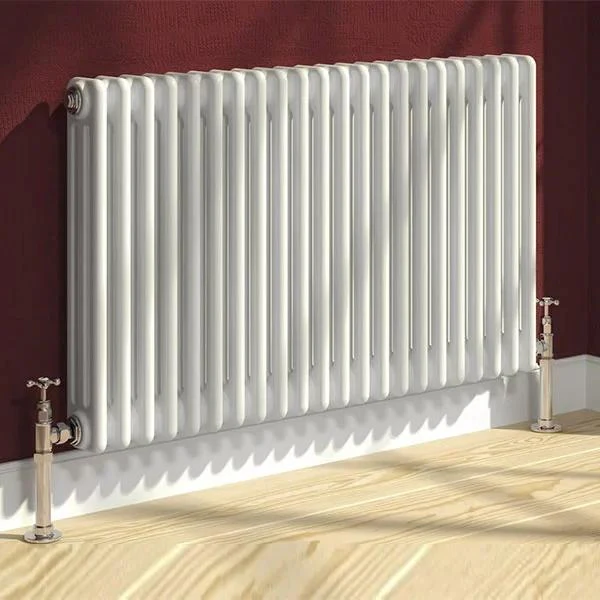

The steel column Colona horizontal radiator from Reina helps to bring traditional charm to any interior. Available in either 2, 3 or 4-column depths, there are 34 different configurations to choose from in total. The radiator is supplied with wall brackets as standard, but can also be combined with optional slip-on feet (sold separately) to add a different aesthetic, as well as helping with weight distribution.

• Classic column design - perfect for maintaining a traditional look in the home
• Supplied with adjustable wall brackets and fittings, end plug, and bleed valve
• Sturdy and reliable mild steel construction
• Suitable for use with standard central heating systems
• Suitable for dual-fuel and electric-only installations with additional accessories
• Manufactured to BS EN 442 standards
• Supplied with a 5 year guarantee from the manufacturer
• Radiator valves are sold separately
• Optional adjustable slip-on feet available separately

Technical Specification

Size (Height x Width):	Pipe Centres	Wall to Pipe cent	Wall Distance	2-Column Tube Quantity	Fuel	Delta T60°C Btu	Delta T60°C watts
500 x 605	605mm	66mm	98mm	13	C/E/D	2,082	611
500 x 785	785mm	66mm	98mm	17	C/E/D	2,723	799
500 x 1010	1010mm	66mm	98mm	22	C/E/D	3,525	1034
500 x 1190	1190mm	66mm	98mm	26	C/E/D	4,165	1221
600 x 605	605mm	66mm	98mm	13	C/E/D	2,477	726
600 x 785	785mm	66mm	98mm	17	C/E/D	3,239	950
600 x 1010	1010mm	66mm	98mm	22	C/E/D	4,190	1229
600 x 1190	1190mm	66mm	98mm	26	C/E/D	4,953	1452



Size (Height x Width):	Pipe Centres	Wall to Pipe cent	Wall Distance	3-Column Tube Quantity	Fuel	Delta T60°C Btu	Delta T60°C watts
300 x 1010	1010mm	68mm	118mm	22	C/E/D	2,953	866
300 x 1190	1190mm	68mm	118mm	26	C/E/D	3,489	1023
300 x 1370	1370mm	68mm	118mm	30	C/E/D	4,026	1181
500 x 605	605mm	68mm	118mm	13	C/E/D	2,870	842
500 x 785	785mm	68mm	118mm	17	C/E/D	3,753	1101
500 x 1010	1010mm	68mm	118mm	22	C/E/D	4,856	1424
500 x 1190	1190mm	68mm	118mm	26	C/E/D	5,742	1684
500 x 1370	1370mm	68mm	118mm	30	C	6,624	1943
600 x 605	605mm	68mm	118mm	13	C/E/D	3,390	994
600 x 785	785mm	68mm	118mm	17	C/E/D	4,416	1295
600 x 1010	1010mm	68mm	118mm	22	C/E/D	5,715	1676
600 x 1190	1190mm	68mm	118mm	26	C/E/D	6,755	1981
600 x 1370	1370mm	68mm	118mm	30	C	7,793	2285



Size (Height x Width):	Pipe Centres	Wall to Pipe cent	Wall Distance	4-Column Tube Quantity	Fuel	Delta T60°C Btu	Delta T60°C watts
300 x 1010	1010mm	94mm	163mm	22	C/E/D	3,811	1118
300 x 1190	1190mm	94mm	163mm	26	C/E/D	4,502	1320
300 x 1370	1370mm	94mm	163mm	30	C/E/D	5,196	1524
500 x 605	605mm	94mm	163mm	13	C/E/D	3,658	1073
500 x 785	785mm	94mm	163mm	17	C/E/D	4,784	1403
500 x 1010	1010mm	94mm	163mm	22	C/E/D	6,191	1816
500 x 1190	1190mm	94mm	163mm	26	C	7,317	2146
500 x 1370	1370mm	94mm	163mm	30	C	8,443	2476
600 x 605	605mm	94mm	163mm	13	C/E/D	4,334	1271
600 x 785	785mm	94mm	163mm	17	C/E/D	5,668	1662
600 x 1010	1010mm	94mm	163mm	22	C/E/D	7,335	2151
600 x 1190	1190mm	94mm	163mm	26	C	8,668	2542
600 x 1370	1370mm	94mm	163mm	30	C	10,001	2933
