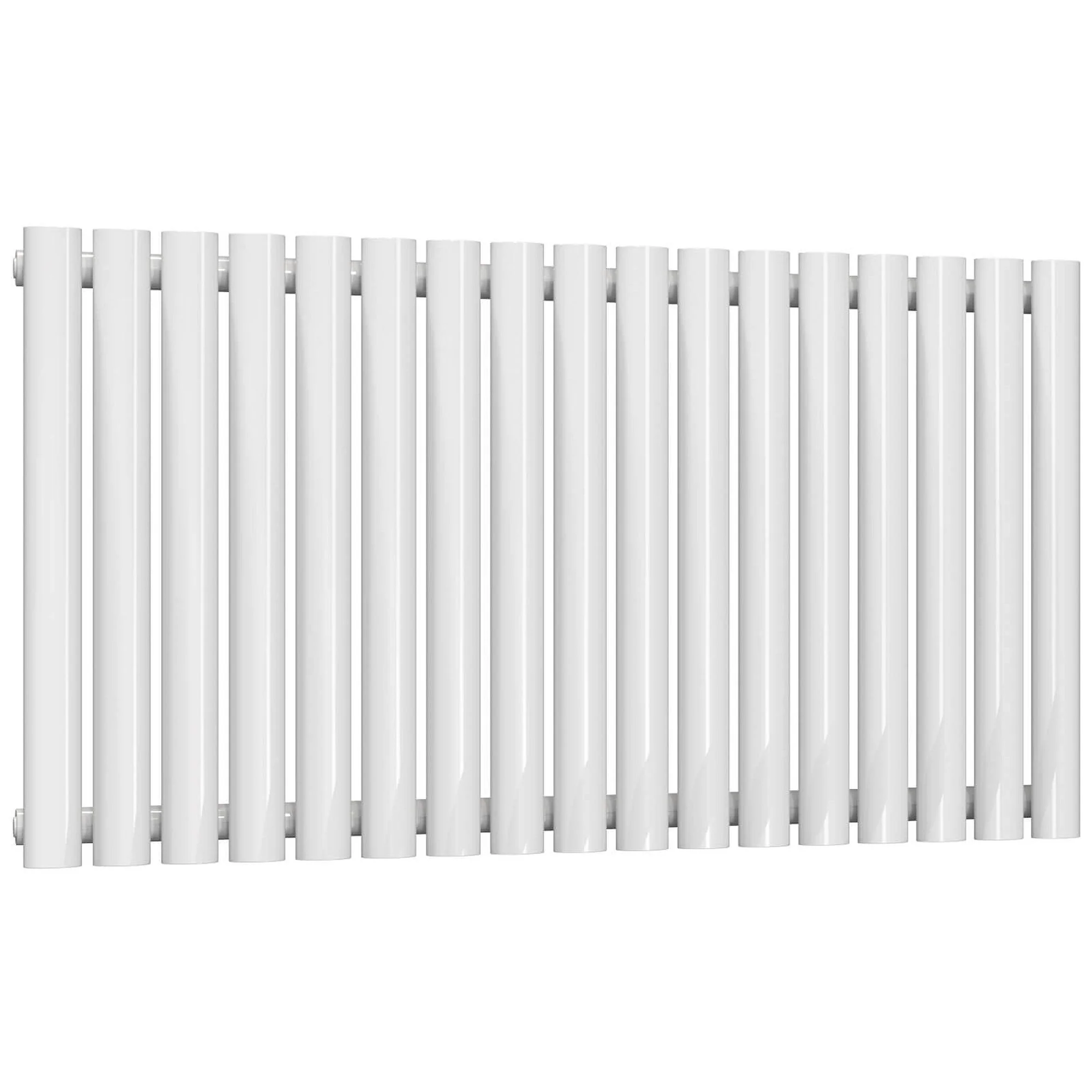

The Neva Modern Horizontal Radiator presents flexible installation possibilities, enabling it to be mounted horizontally, with optional brackets available. Boasting stylish oval tubes and offered as a single or double model, it is constructed from robust steel for outstanding heat distribution. With a wonderful array of color options and supported by a 5-year warranty, the Neva effortlessly combines elegance and functionality to enhance any room.

Product Features

• Designer radiator utilising oval-shaped tubes
• Double panel format; sets of tubes mounted on the front and back of the radiator

• Strong and durable mild steel construction
• Supplied with wall brackets and fixings for wall-mounted installation
• Suitable for use with standard central heating systems
• Suitable for dual-fuel or electric-only installations
• 1/2" BSP side connections - allow +90mm for radiator valve pipe centres
• Manufactured to BS/EN 442
• Radiator valves are sold separately - Reina recommends the Modal TRV

Technical Specification

Size (Height x Width):	Pipe Centres	Wall to Pipe cent	Wall Distance	Tube Quantity	Fuel	Delta T60°C Btu	Delta T60°C watts
550 x 413mm	413mm	65mm	103mm	7	C/E/D	1,186	348
550 x 590mm	590mm	65mm	103mm	10	C/E/D	1,693	496
550 x 826mm	826mm	65mm	103mm	14	C/E/D	2,383	699
550 x 1003mm	1003mm	65mm	103mm	17	C/E/D	2,879	844
550 x 1180mm	1180mm	65mm	103mm	20	C/E/D	3,386	993
550 x 1416mm	1416mm	65mm	103mm	24	C/E/D	4,063	1191



Size (Height x Width):	Pipe Centres	Wall to Pipe cent	Wall Distance	Double (Columns)	Fuel	Delta T60°C Btu	Delta T60°C watts
550 x 413mm	413mm	65mm	103mm	14	C/E/D	1,898	557
550 x 590mm	590mm	65mm	103mm	20	C/E/D	2,710	795
550 x 826mm	826mm	65mm	103mm	28	C/E/D	3,812	1118
550 x 1003mm	1003mm	65mm	103mm	34	C/E/D	4,606	1351
550 x 1180mm	1180mm	65mm	103mm	40	C/E/D	5,418	1589
550 x 1416mm	1416mm	65mm	103mm	48	C/E/D	6,501	1906



NB:  All measurements are approximate. In line with manufacturing policy we reserve the right to amend specification without prior notice. Appearance of CGI representations may differ slightly from the actual product.
