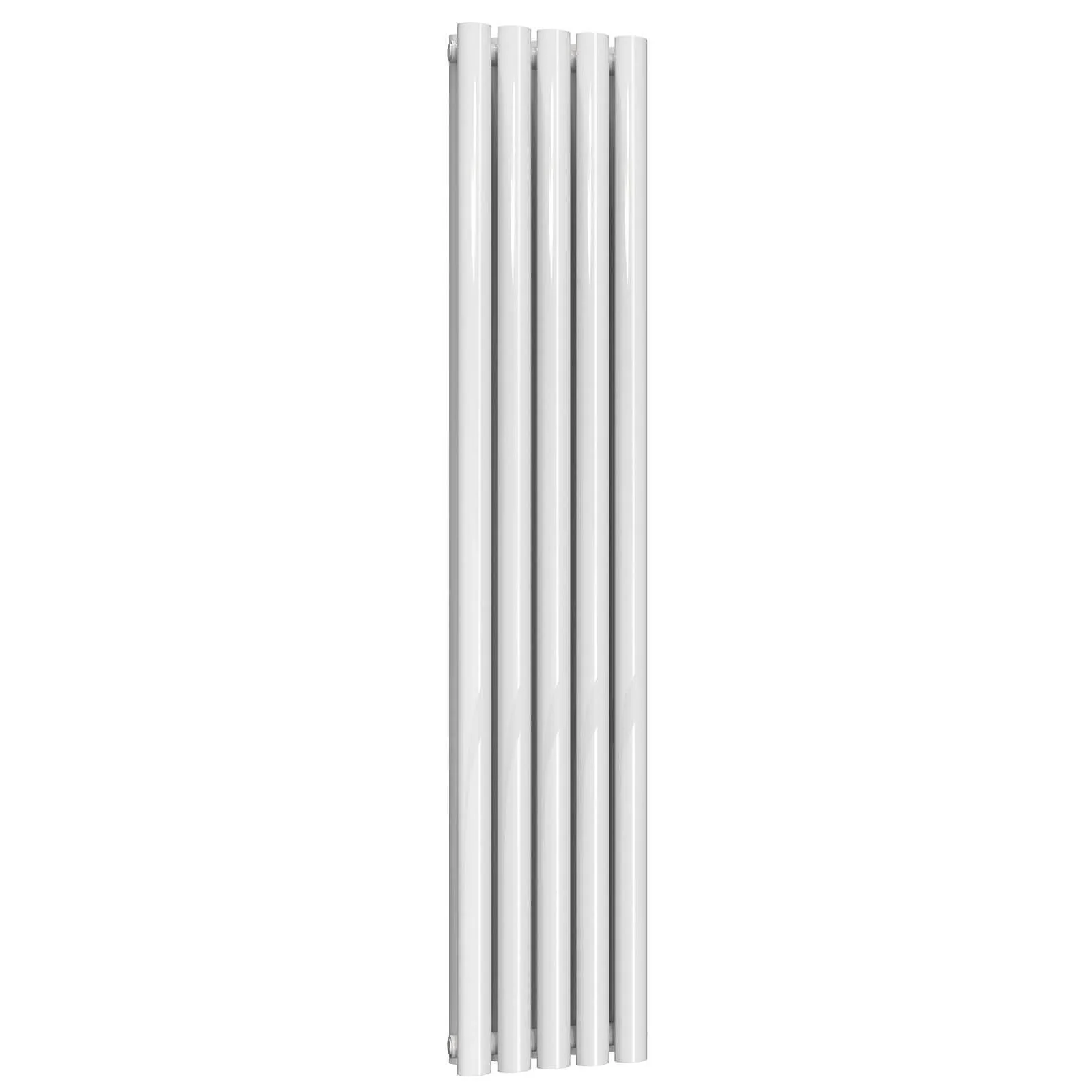

Reina's popular Neva vertical radiator consists of multiple oval-shaped tubes, arranged across a single (front) or double (front and back) format depending on the heating requirements of the room. The mild steel construction of the Neva radiator makes it tough and dependable whilst remaining at a competitive price, allowing more homes to benefits from a stylish upgrade to their heating system.

Product Features

• Vertical radiator consisting of multiple sets of oval-shaped tubes
• Single panel format; 1 set of tubes mounted on the front of the radiator
• Double panel format; sets of tubes mounted on the front and back of the radiator
• Strong and durable mild steel construction
• Supplied with wall brackets and fixings for wall-mounted installation
• Suitable for use with central heating systems - not suitable for dual-fuel or electric-only systems
• Vertical models are best suited to larger rooms such as master bedrooms, living rooms and hallways
• Manufactured to BS/EN 442
• 1/2" BSP side connections - allow +90mm for radiator valve pipe centres
• Radiator valves are sold separately - Reina recommends the Modal TRV

Technical Specification

Size (Height x Width):	Pipe Centres	Wall to Pipe cent	Wall Distance	Tube Quantity	Fuel	Delta T60°C Btu	Delta T60°C watts
1500 x 236mm	236mm	65mm	103mm	4	C	1,857	545
1500 x 295mm	295mm	65mm	103mm	5	C	2,308	677
1500 x 354mm	354mm	65mm	103mm	6	C	2,770	812
1500 x 413mm	413mm	65mm	103mm	7	C	3,233	948
1500 x 472mm	472mm	65mm	103mm	8	C	3,695	1084
1500 x 531mm	531mm	65mm	103mm	9	C	4,156	1219
1800 x 236mm	236mm	65mm	103mm	4	C	2,227	653
1800 x 295mm	295mm	65mm	103mm	5	C	2,770	812
1800 x 354mm	354mm	65mm	103mm	6	C	3,324	975
1800 x 413mm	413mm	65mm	103mm	7	C	3,879	1138
1800 x 472mm	472mm	65mm	103mm	8	C	4,433	1300
1800 x 531mm	531mm	65mm	103mm	9	C	5,643	1655

Size (Height x Width):	Pipe Centres	Wall to Pipe cent	Wall Distance	Double (Columns)	Fuel	Delta T60°C Btu	Delta T60°C watts
1500 x 236mm	236mm	65mm	103mm	8	C	2,803	822
1500 x 295mm	295mm	65mm	103mm	10	C	3,485	1022
1500 x 354mm	354mm	65mm	103mm	12	C	4,183	1227
1500 x 413mm	413mm	65mm	103mm	14	C	4,882	1432
1500 x 472mm	472mm	65mm	103mm	16	C	5,580	1636
1500 x 531mm	531mm	65mm	103mm	18	C	6,275	1840
1800 x 236mm	236mm	65mm	103mm	8	C	3,363	986
1800 x 295mm	295mm	65mm	103mm	10	C	4,183	1227
1800 x 354mm	354mm	65mm	103mm	12	C	5,019	1472
1800 x 413mm	413mm	65mm	103mm	14	C	5,857	1718
1800 x 472mm	472mm	65mm	103mm	16	C	6,694	1963
1800 x 531mm	531mm	65mm	103mm	18	C	7,530	2208
