The beautiful complete Evo bathroom suite, make the most of your bathroom with our stylish and practical modern bathroom suites. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

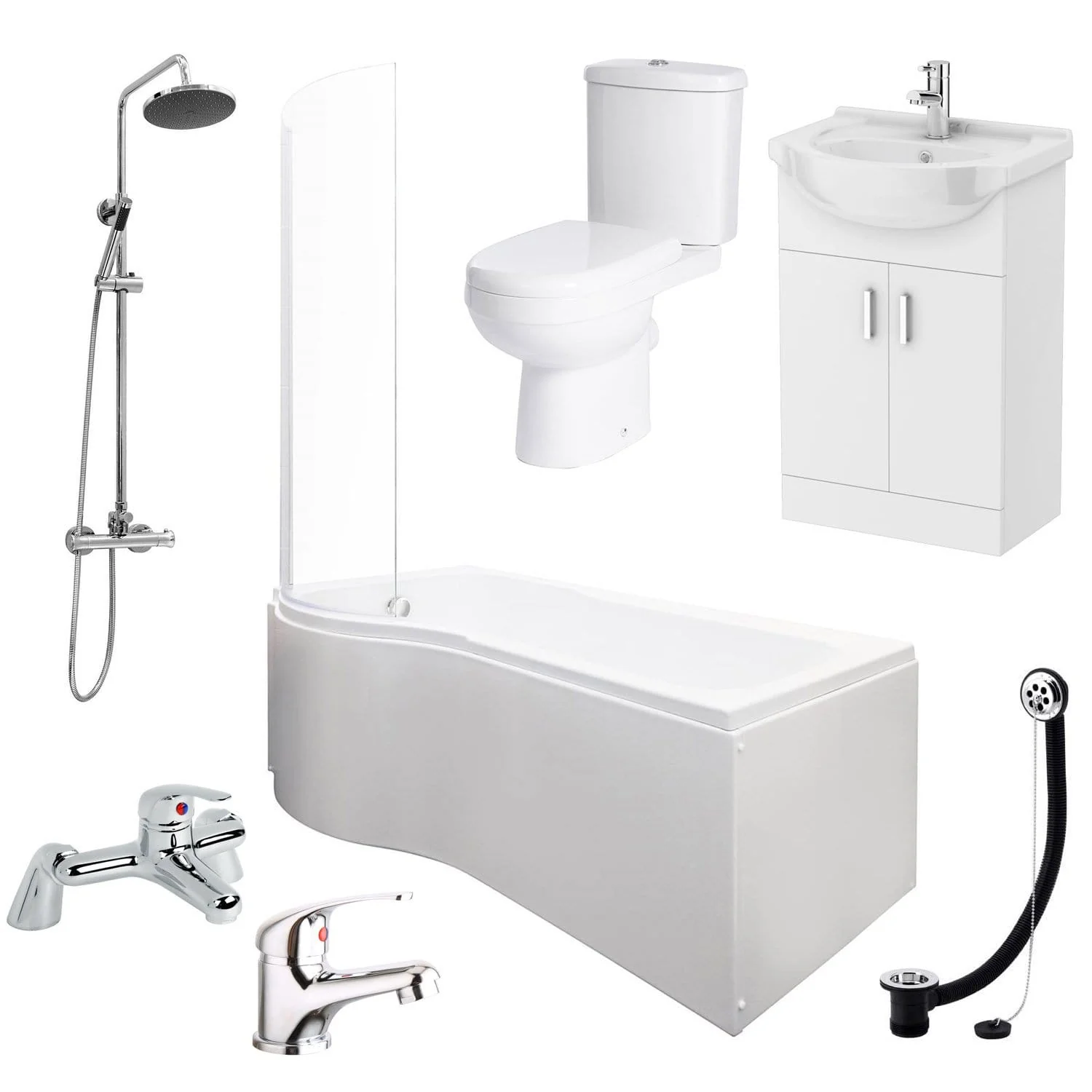

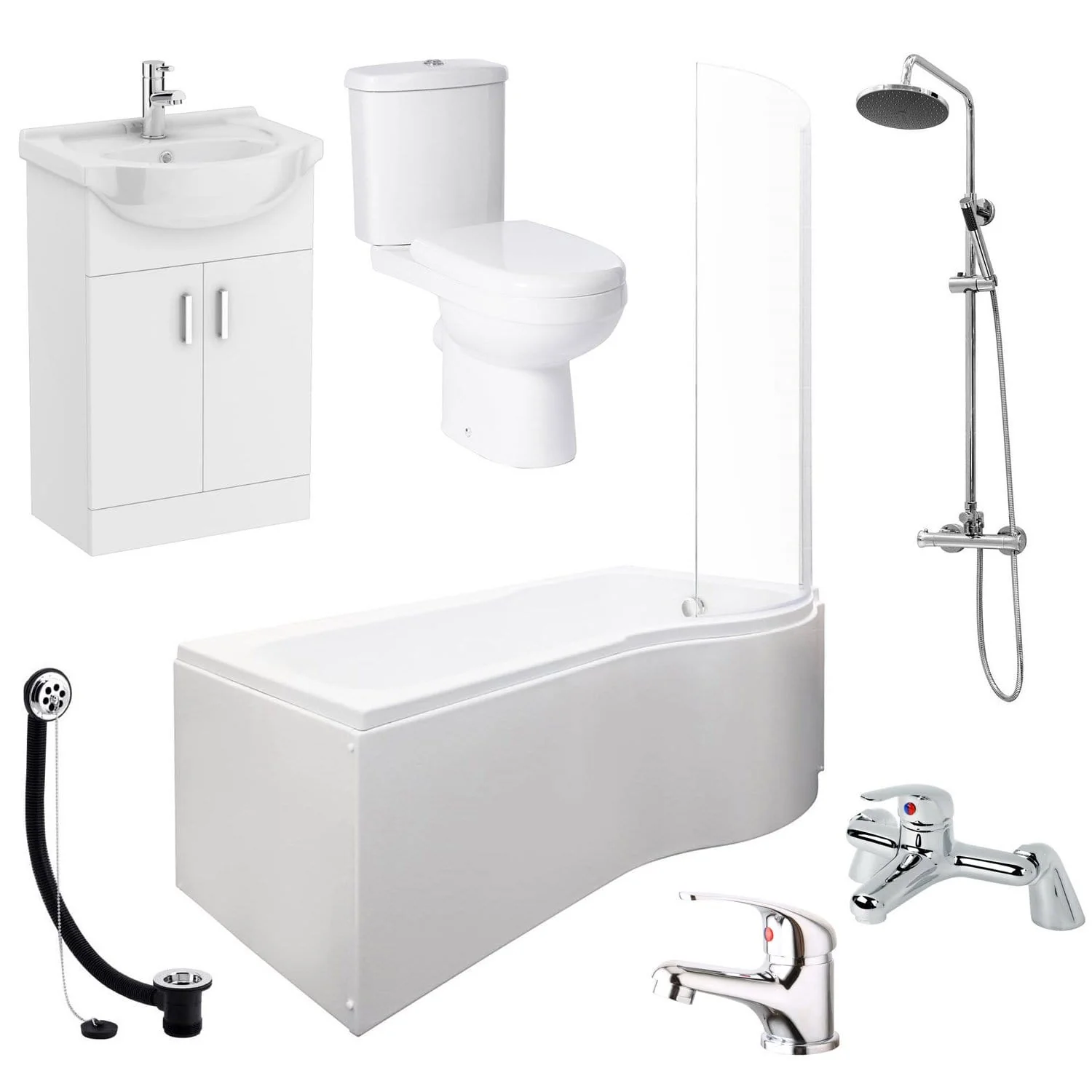

Suite includes :-

Bath
Bath Screen
550 Vanity Unit with Basin
Close-coupled toilet and seat
Shower
Basin mono mixer and waste
Bath Filler
Bath waste plug and chain

Technical Specification

Toilet

• Total Height : 780mm
• Pan Height : 395mm
• Width : 375mm
• Projection : 640mm
• Outlet Connection Size : 185mm
• Toilet Pan Outlet : Horizontal
• Toilet Type : Close Coupled
• Material Specification : Vitreous China
• Cistern Type : 3/6 Litre Dual Flush
• Shape : Round
• Weight : 33.85kg
• Features : 3/6 Litre Dual Flush Cistern
• Includes : Pan, Cistern & Soft Close Seat
• Seat Material Specification : Polypropylene

Vanity Unit

• Height (Unit & Basin): 850mm
• Width (Unit & Basin): 550mm
• Depth (Unit & Basin): 440mm
• 2-Door Design
• MDF Unit Construction
• Soft-Close Hinges
• Central Internal Shelf
• Chrome Door Handle
• Some assembly required
• Includes : Single Tap-Hole Basin
• Excludes : Tap & Waste

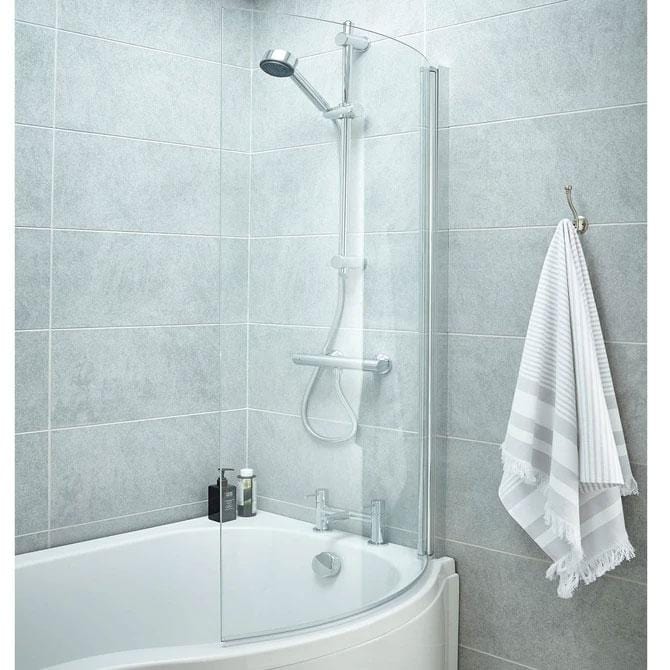

Bath Screen

• Bath Screen Height : 1435mm
• Bath Screen Width : 720mm
• Adjustment Range : 720 - 740mm
• Glass Thickness : 6mm
• Swing Radius : 550mm
• Bath Screen Design : Curved
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible
• CE Approved : Yes
• Towel Rail : Excluded

Bath

• Length : 1500mm
• Width : 850mm / 700mm
• Height : 560mm
• Style : Contemporary
• Material : High Quality Reinforced Acrylic
• Includes : Bath, Front Panel & Hinged Screen
• 6mm Toughened safety glass screen - 180 Pivot
• Supplied undrilled, allowing you to place the taps along the back or end
• Finish : White

Shower

• Height : Adjustable from 850 to 1250mm
• Shower Head Size : 200mm
• Total Projection: 435mm
• Round modern thermostatic shower
• Latest ceramic disc technology
• High quality design and build
• Adjustable handset height
• Latest thermostatic system
• Working pressure between 0.5 and 5.0 bar pressure
• 1500mm shower hose
• Easyclean anticalc jets on both showerhead and handset
• Thermostatic shower incorporates diverter to control flow to either overhead rose or handset
• Set complete with one 200mm shower rose and one handset
• Lightweight handset provided to minimise risk of damage to shower tray or bath in case of accidental droppage
• Round thermostatic mixing valve of durable brass construction and chrome finish
• Rigid riser with polished chrome finish
• Easy installation

• 150mm inlet centres on thermostatic valve
• 15mm water inlet feeds
• Gravity systems require minimum of 5 metre drop between bottom of water tank and shower head (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised systems between 0.5 and 5.0 bar pressure
• Suitable for shower pumps
• Complete with installation instructions
• Guarantee : 5 Years

Waste

• Includes : Overflow
• Suitable for baths up to 5mm thick
• Connection Size : 1 1/2"
• Waste Pipe Length : 500mm
• Waste Pipe Diameter : 23mm
• Product Diameter : 70mm
